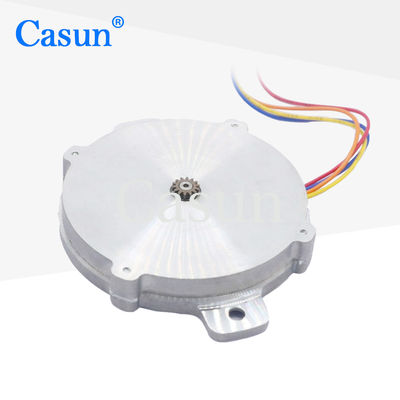

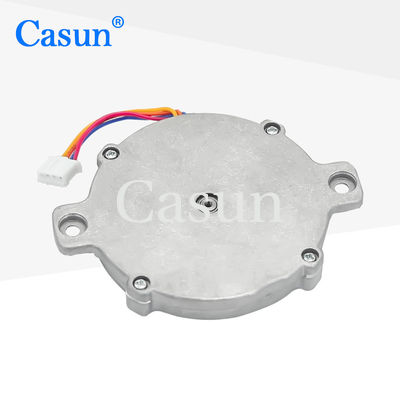

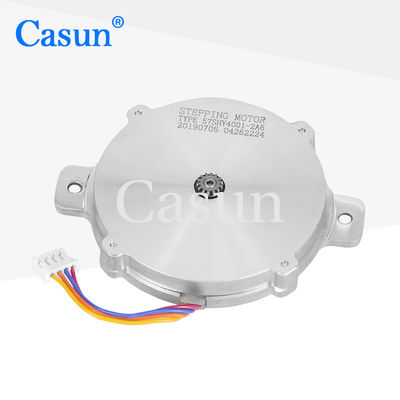

Casun Nema 23 Flat Stepper Motor High Torque Two Phase CE And RoHS

Nazwa marki:	Casun
Numer modelu:	57SHY4001-2A6
MOQ:	1 szt
Cena:	$9.68-13.46
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Kąt kroku:

1,8°

Ciało:

9,6 mm

Aktualny:

0,8A

Trzymanie momentu obrotowego:

60mN.m

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Nema 23 Flat Stepper Motor

Casun Nema 23 Flat Stepper

Casun Flat Stepper Motor High Torque

Opis produktu

The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	0.8A
Holding Torque	60 mN.m
Resistance	3.5 om
Inductance	1.8 mH
Rotor Inertia	2 g-cm²
Motor weight	0.03 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Motor Length	Current	Holding Torque

57SHY4001	9.6mm	0.8A	60mN.m

57SHY4301	13mm	1.2A	125mN.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 23 Flat Stepper Motor High Torque Two Phase CE And RoHS 1

Please click the "Get a quote" button below to tell us your requirements.
