Pancake 57x57x13mm Flat Stepper Motor Nema57 2.88V DC Bipolar Version

Nazwa marki:	Casun
Numer modelu:	57SHY4301-6
MOQ:	1 szt
Cena:	$12.3-$13.84
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

produkt:

nema57

Trzymanie momentu obrotowego:

135mNm

Prąd znamionowy:

1.2A

Woltaż:

2,88 V prądu stałego

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Pancake Flat Stepper Motor

nema57 Flat Stepper Motor

Opis produktu

Casun pancake steppper motor 57x57x13mm flat stepper motor with high stepper motor

NEMA23 Flat stepper motor 57mmx57mmx13mm pancake step motor for medical beauty equipment robotics

The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

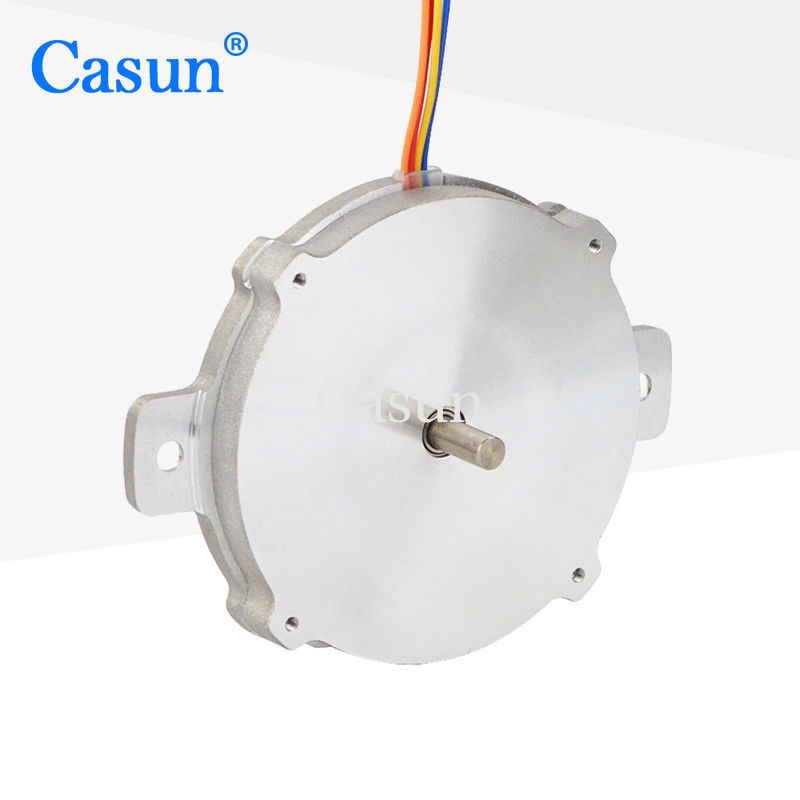

Pancake 57x57x13mm Flat Stepper Motor Nema57 2.88V DC Bipolar Version 1

Motor Specifications

Step Angel	1.8 °
Fram Size	57mm
Number of Phase	2 Phase
Rated Current	1.2A
Holding Torque	135mN.m
Resistance	3.5 om
Inductance	1.8mH
Rotor Inertia	15 g-cm²
Motor weight	75g
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Motor Length	Current	Holding Torque

P28SHD4611	9.5mm	0.5A	16mN.m

P28SHD4701	10.6mm	0.5A	20mN.m

P28SHD4750	13-15mm	0.5A	25mN.m

P28SHD4950	17.9mm	0.5A	35mN.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

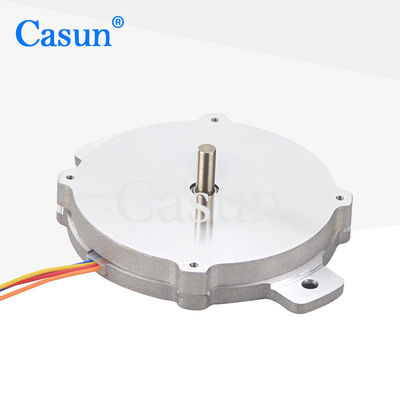

Pancake 57x57x13mm Flat Stepper Motor Nema57 2.88V DC Bipolar Version 2

Please click the "Get a quote" button below to tell us your requirements.
