Nema 17 Closed Loop Stepper Motor High Torque 1.2A 424234mm For Robot

Nazwa marki:	Casun
Numer modelu:	42SHD4034-24BQH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

320mNm

Aktualny:

1.2A

Długość silnika:

34 MM

Wał:

Płaski wał frezujący o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Nema 17 Closed Loop Stepper Motor

Closed Loop Stepper Motor High Torque

Closed Loop Stepper Motor 1.2A

Opis produktu

Nema 17 Closed Loop Stepper Motor High Torque 1.2A 42*42*34mm For Robot

The closed-loop control system enables automatic calibration, reducing the complexity of manual debugging.

Mainly used in fields that require high-precision positioning and motion control.

Features:

Every stepper motor model has use in a variety of situations.
We provide personalized services and are open to contract manufacturing
Available in single or double shaft versions
Dealers wanted!
Having operated in China for 12 years, we have served over 800 customers

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	320 mN.m
Resistance	5.0 ohm
Inductance	6.2 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

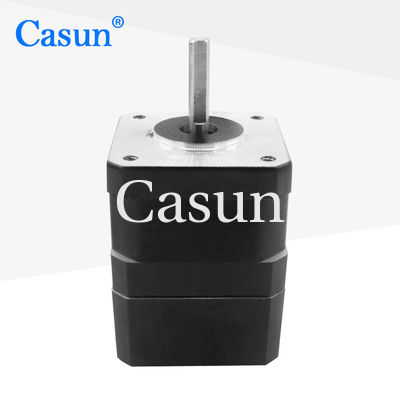

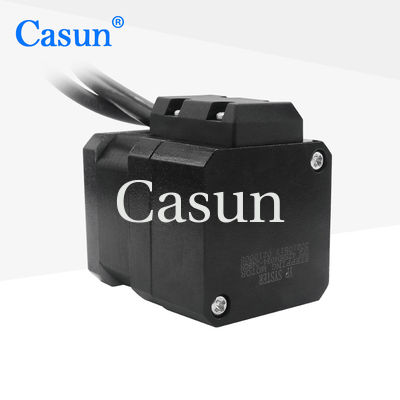

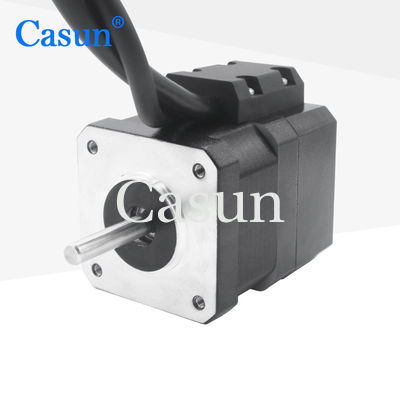

Appearance

Nema 17 Closed Loop Stepper Motor High Torque 1.2A 42*42*34mm For Robot 0

Dimensions

Nema 17 Closed Loop Stepper Motor High Torque 1.2A 42*42*34mm For Robot 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
