Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor

Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor

Nazwa marki:	Casun
Numer modelu:	28SHD4401-20B
MOQ:	1 szt
Cena:	$6.49-$9.5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

95mNm

Aktualny:

0,67A

Długość silnika:

44,6 mm

Wał:

D Długość wału 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

28X28mm NEMA 11 Stepper Motor

0.67A Two Phase Bipolar Stepper Motor

Casun NEMA 11 Stepper Motor

Opis produktu

28X28x44mm 0.67A 2 Phase Bipolar 1.8 Degree Stepper Motor Nema 11 Mini Stepping Motor

The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

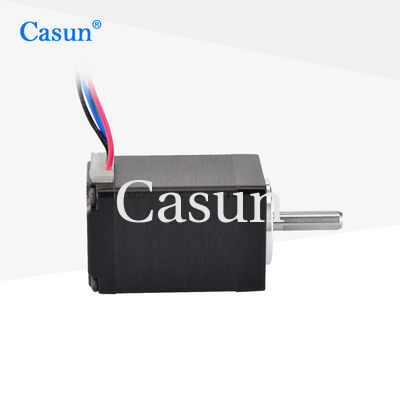

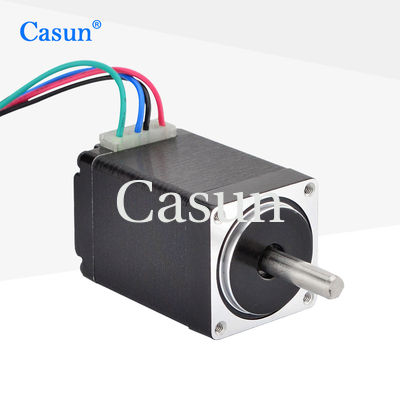

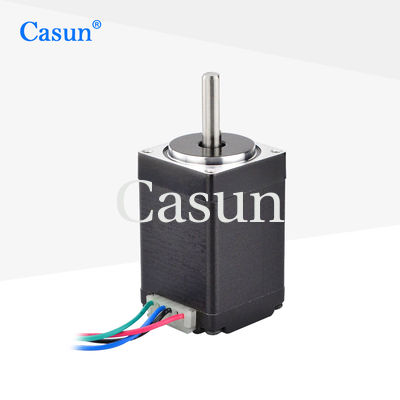

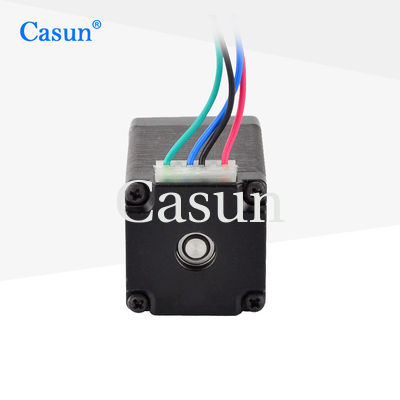

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.6 7A
Holding Torque	95 mN.m
Resistance	6.8 ohm
Inductance	4.9 mH
Rotor Inertia	9 g-cm²
Motor weight	0.16 kg
Number of leads	4
Connection	Bipolar

Torque Curves

Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor 2

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
