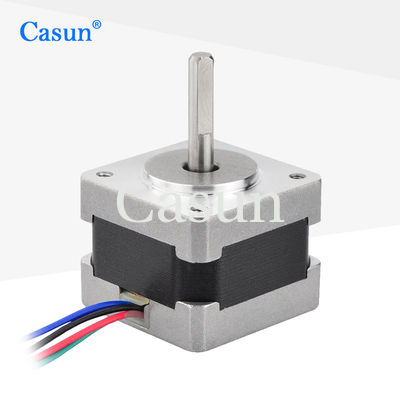

Casun Bipolar NEMA 14 Stepper Motor 35mm 12 Volt DC Stepper Motor

Casun Bipolar NEMA 14 Stepper Motor 35mm 12 Volt DC Stepper Motor

Nazwa marki:	Casun
Numer modelu:	35SHD0001-20
MOQ:	1 szt
Cena:	$4.14-$6.98
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

100mNm

Aktualny:

0,4a

Długość silnika:

26mm

Wał:

D Długość wału 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Casun Bipolar NEMA 14 Stepper Motor

35mm 12 Volt DC Stepper Motor

Casun 12 Volt DC Stepper Motor

Opis produktu

The 35mm base stepper motor adopts advanced design and manufacturing technology, which can reduce the occurrence of vibration and noise during operation.

The control of stepper motors is relatively simple, usually driven by pulse signals.

Features:

Both contract manufacturing and specialised services are available from us
Recognise contract manufacturing
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	100 mN.m
Resistance	20 ohm
Inductance	20 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Casun Bipolar NEMA 14 Stepper Motor 35mm 12 Volt DC Stepper Motor 2

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
