【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401

【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401

Nazwa marki:	Casun
Numer modelu:	42SHD0261-24BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

450mNm

Aktualny:

1,68A

Długość silnika:

40mm

Wał:

Płaski wał frezujący o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

42SHD0261 NEMA 17 Stepper Motor

Opis produktu

The 42mm stepper motor has undergone good manufacturing and design, with a longer lifespan and lower failure rate.

Printers, engraving machines, 3D printers, and robots.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Deliver "multiple international certifications" for electrical and high-tech devices
CE and RoHS approved
Ten-year warranty and purchase with confidence

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	450 mN.m
Resistance	1.95 ohm
Inductance	4.4 mH
Rotor Inertia	57 g-cm²
Motor weight	0. kg
Number of leads	4
Connection	Bipolar

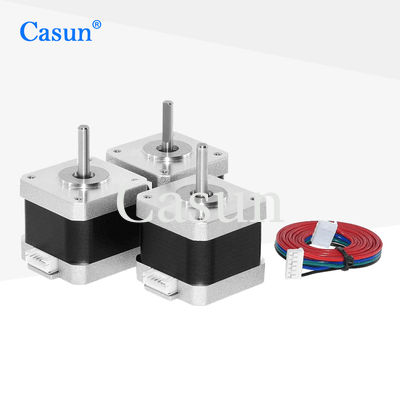

Appearance

【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401 0

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
