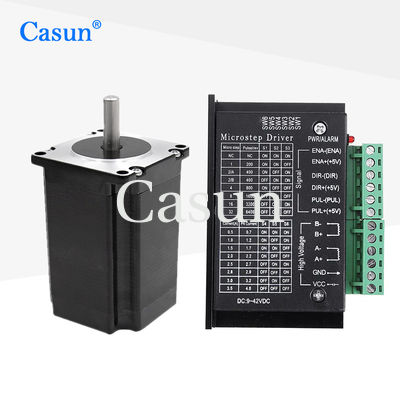

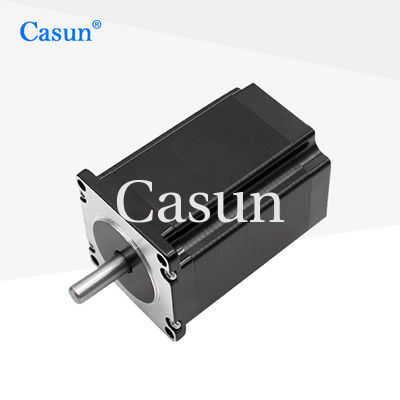

2Nm 2.8A 3.2V NEMA 23 Stepper Motor For Cnc Machine 57x57mm CNC Stepping Motor

2Nm 2.8A 3.2V NEMA 23 Stepper Motor For Cnc Machine 57x57mm CNC Stepping Motor

Nazwa marki:	Casun
Numer modelu:	57SHD4809-24
MOQ:	1 szt
Cena:	$9.49-$14
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

2.8A 3.2V NEMA 23 Stepper Motor

2Nm 2.8A NEMA 23 Stepper Motor

57x57mm CNC Stepping Motor

Opis produktu

The 57mm Hybrid Stepper Motor Series comes in a range of sizes and provides strong holding torque.

To lessen vibration and produce a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8A
Holding Torque	2000mN.m
Resistance	1.5hm
Inductance	5mH
Rotor Inertia	460 g-cm²
Motor weight	1 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

2Nm 2.8A 3.2V NEMA 23 Stepper Motor For Cnc Machine 57x57mm CNC Stepping Motor 1

Please click the "Get a quote" button below to tell us your requirements.
