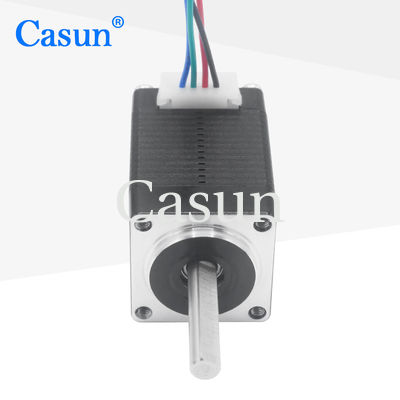

21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires

21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires

Nazwa marki:	Casun
Numer modelu:	20SHD4502-19B1
MOQ:	1 szt
Cena:	$5.94-$8.6
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

21mNm

Aktualny:

0,8A

Długość silnika:

33mm

Wał:

Płaski wał frezujący o długości 19 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Bipolar NEMA 8 Stepper Motor

21mNM NEMA 8 Stepper Motor

NEMA 8 1.8 Deg Stepper Motor

Opis produktu

The 20mm base stepper motor has a simple structure, therefore it has high reliability and stability.

Medical and scientific equipment, Wearable technology, machine vision and 3D printers.

Features:

High accuracy and torque
Offer custom services
Available in single or double shaft versions
Different situations may call for a particular stepper motor model
The best solution will be offered by our engineers in contact with you within 48 hours

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	21 mN.m
Resistance	4.5 ohm
Inductance	1.6 mH
Rotor Inertia	2.5 g-cm²
Motor weight	0.07 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
