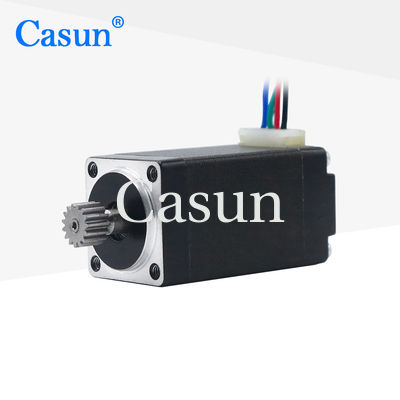

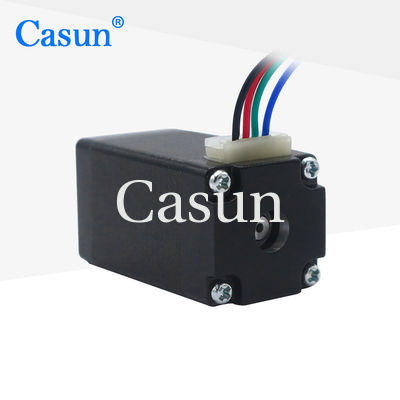

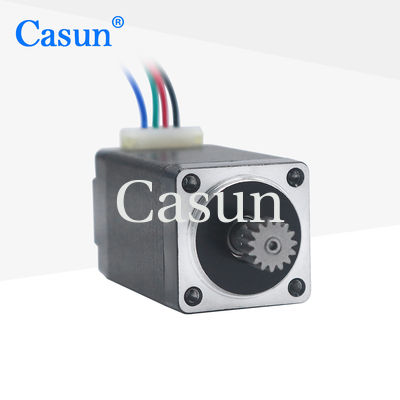

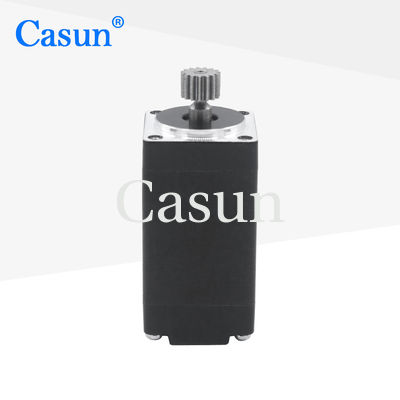

0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor

0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor

Nazwa marki:	Casun
Numer modelu:	B20SHD4252-10P
MOQ:	1 szt
Cena:	$5.94-$8.6
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

40mNm

Aktualny:

0,6A

Długość silnika:

38,2 mm

Wał:

Specjalny wał o długości 9,8 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.6A 6V NEMA 8 Stepper Motor

NEMA 8 Stepper Motor 40mNm

40mNm 2 Phase Bipolar Stepper Motor

Opis produktu

The 28mm base stepper motor can accurately control the position according to the predetermined step size, achieving high-precision positioning and motion control.

Make it very useful in many applications, such as printers, robots, automation equipment, etc.

Features:

High accuracy and torque
Manufacturing with expertise in research and developmen
Available in single or double shaft versions
We accept contract manufacturing and provide bespoke services
Each model of stepper motor can be suitable for different scenarios

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	40 mN.m
Resistance	10 ohm
Inductance	4.5 mH
Rotor Inertia	4.5 g-cm²
Motor weight	0.1 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
