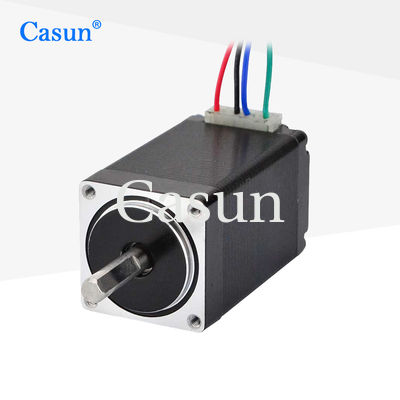

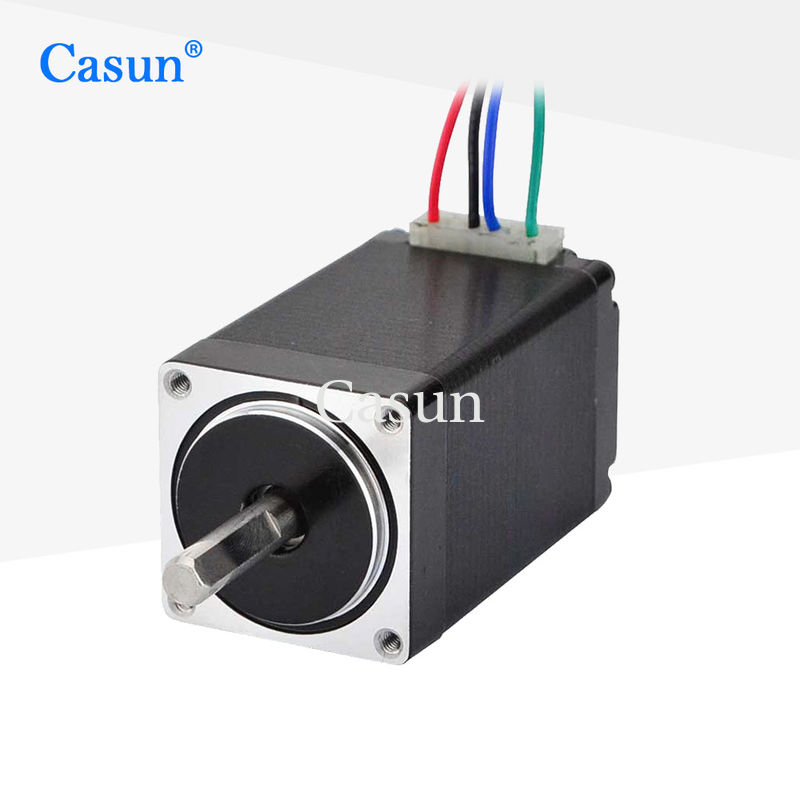

120mNm NEMA 11 Stepper Motor 28x28x51mm Casun Stepper Motor

120mNm NEMA 11 Stepper Motor 28x28x51mm Casun Stepper Motor

Nazwa marki:	Casun
Numer modelu:	28SHD4501-20B
MOQ:	1 szt
Cena:	$5.94-$8.6
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

120mNm

Aktualny:

0,67A

Długość silnika:

51,5 mm

Wał:

Frezowanie płaskiego wału o długości 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

120mNm NEMA 11 Stepper Motor

Stepper Motor 28x28x51mm

51mm Casun Stepper Motor

Opis produktu

The 28mm hybrid stepper motors typically have smaller dimensions and lower weight, making them suitable for compact spaces and lightweight equipment.

With high accuracy and resolution, precise position control can be achieved.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Manufacturing with expertise in research and development
Different situations may call for a particular stepper motor model
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	120 mN.m
Resistance	9.2 ohm
Inductance	7.2 mH
Rotor Inertia	18 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

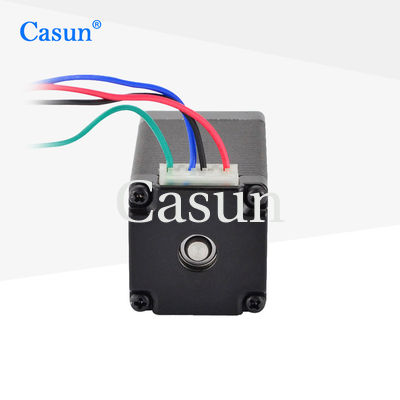

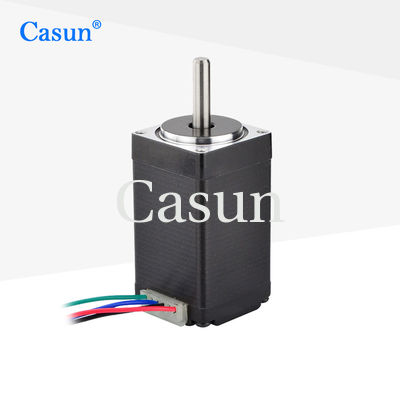

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
