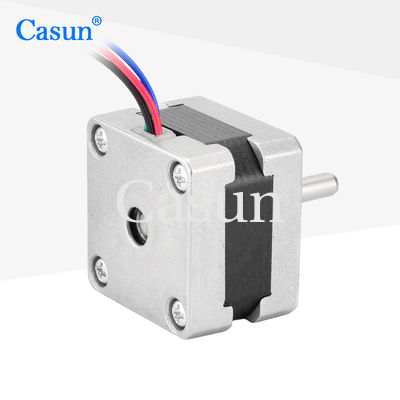

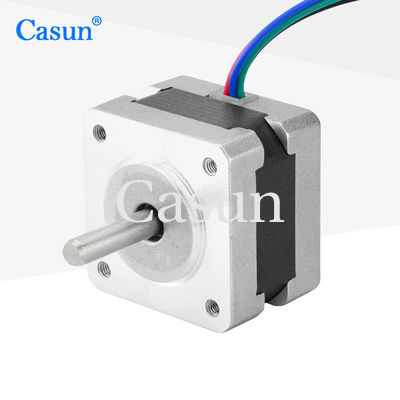

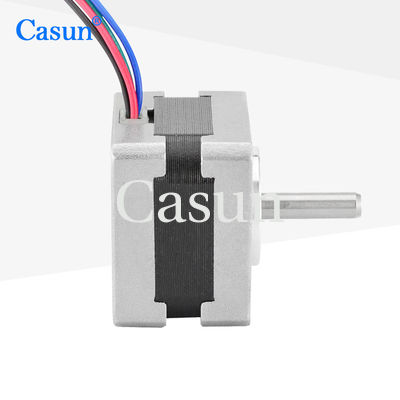

0.4A 12V Stepper Motor High Torque 110 MNm 12V Bipolar Stepper Motor

0.4A 12V Stepper Motor High Torque 110 MNm 12V Bipolar Stepper Motor

Nazwa marki:	Casun
Numer modelu:	35SHD0003-30
MOQ:	1 szt
Cena:	$4.14-$6.98
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

110mNm

Aktualny:

0,4a

Długość silnika:

26mm

Wał:

Okrągły wał o długości 30 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.4A 12V Stepper Motor High Torque

12V Stepper Motor High Torque 110 mNm

Casun 12V Bipolar Stepper Motor

Opis produktu

The 35mm Hybrid Stepper Motor Series can quickly start and stop, suitable for applications that require quick response and action.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

Bipolar or unipolar versions available
Versions in unipolar or bipolar are offered
Available in variations with a single or double shaft
Deliver "multiple international certifications" for electrical and high-tech devices
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	110 mN.m
Resistance	30 ohm
Inductance	24 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
