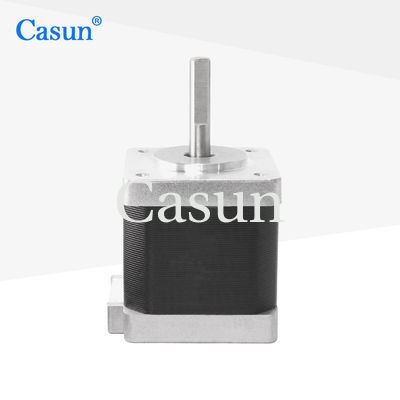

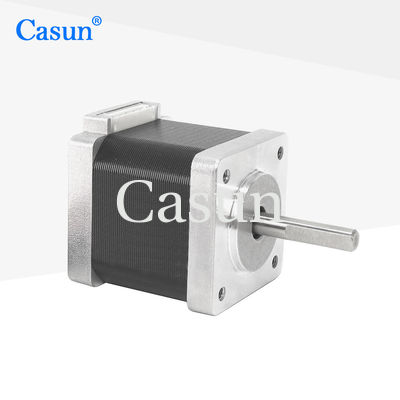

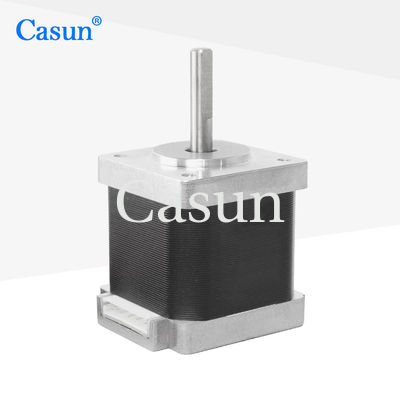

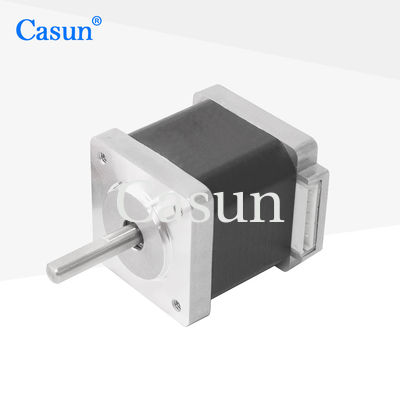

CE Casun 40mm NEMA 14 Stepper Motor CCTV 12V DC Stepper Motor

CE Casun 40mm NEMA 14 Stepper Motor CCTV 12V DC Stepper Motor

Nazwa marki:	Casun
Numer modelu:	35SHD0801-30B
MOQ:	1 szt
Cena:	$4.14-$6.98
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

220mNm

Aktualny:

0,5A

Długość silnika:

40mm

Wał:

Płaski wał frezujący o długości 30 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

CE Casun NEMA 14 Stepper Motor

40mm NEMA 14 Stepper Motor

CCTV 12V DC Stepper Motor

Opis produktu

The operation of the 35mm stepper motor is relatively stable, without the potential vibration and resonance problems of traditional DC motors.

Water pumps, electronic door locks, image scanners, and fine positioning devices are examples of small automation systems.

Features:

Bipolar or unipolar versions available
Over 800 clients have been handled over its twelve years of operation in China
Every stepper motor model has use in a variety of situations
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.5 A
Holding Torque	220 mN.m
Resistance	18 ohm
Inductance	25.5 mH
Rotor Inertia	18 g-cm²
Motor weight	0.21 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
