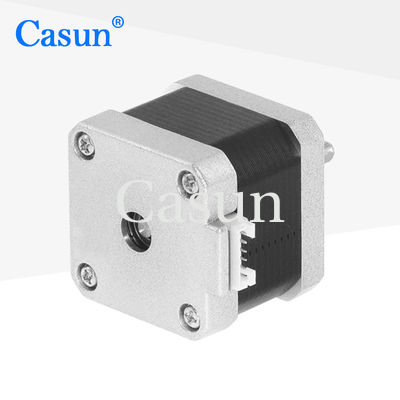

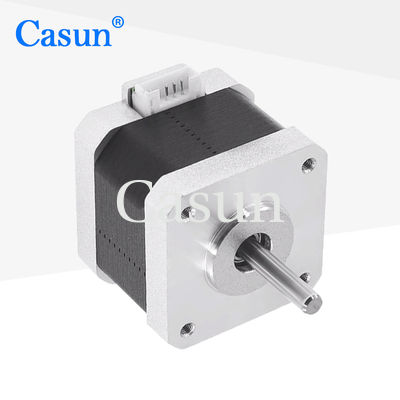

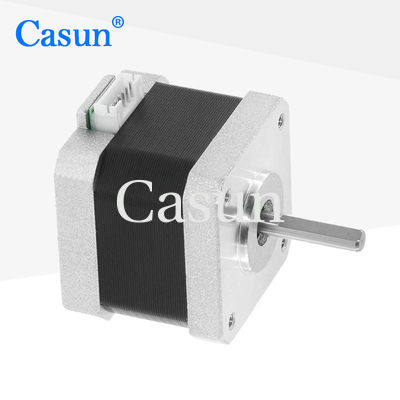

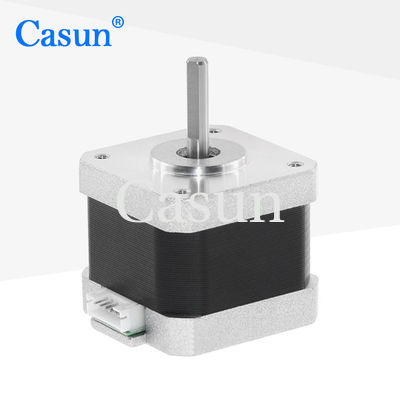

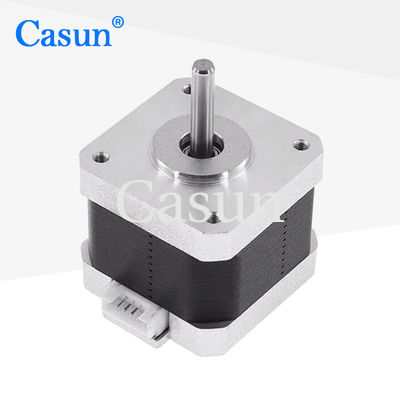

42SHD0229 17HS44 42x42x40mm NEMA 17 Hybrid Stepper Motor 1.68A Super low inventory price for XYZ axis 3D Printer

42SHD0229 17HS44 42x42x40mm NEMA 17 Hybrid Stepper Motor 1.68A Super low inventory price for XYZ axis 3D Printer

Nazwa marki:	Casun
Numer modelu:	42SHD0229-24B
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

360mNm

Aktualny:

1,68A

Długość silnika:

40mm

Wał:

Płaski wał frezujący o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1.68A NEMA 17 Hybrid Stepper Motor

42SHD0229 NEMA 17 Hybrid Stepper Motor

Opis produktu

Stepper motors usually do not require regular maintenance because their design is simple.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
Ten-year warranty and purchase with confidence
Professional drivetrain solution specialist

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	360 mN.m
Resistance	1.65 ohm
Inductance	3.2 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Appearance

42SHD0229 17HS44 42x42x40mm NEMA 17 Hybrid Stepper Motor 1.68A Super low inventory price for XYZ axis 3D Printer 0

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

42SHD0229 17HS44 42x42x40mm NEMA 17 Hybrid Stepper Motor 1.68A Super low inventory price for XYZ axis 3D Printer 2

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirement
