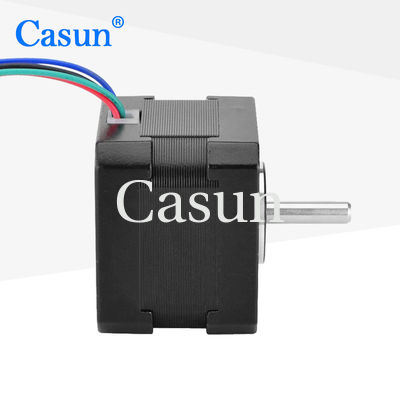

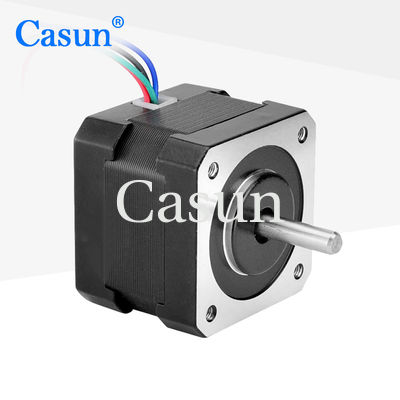

42x42x34mm 2 Phase Stepping Motor 1.8 Degree Nema 17 Stepper Motor 12V for Robot/CCTV with CE

42x42x34mm 2 Phase Stepping Motor 1.8 Degree Nema 17 Stepper Motor 12V for Robot/CCTV with CE

Nazwa marki:	Casun
Numer modelu:	42SHD4003-20BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

260mNm

Aktualny:

0,4a

Długość silnika:

34 MM

Wał:

Frezowanie płaskiego wału o długości 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

12V Nema 17 Stepper Motor

Robot Nema 17 Stepper Motor

Opis produktu

The stepper motor can respond very quickly to commands, providing instant acceleration and deceleration.

The application in medical equipment includes the positioning of precision surgical tools and the adjustment of patient support platforms.

Features:

Bipolar or unipolar versions available
Expert in drivetrain solutions
Every stepper motor model is adaptable to various applications
CE and RoHS approved
Customizations on request

Appearance

42x42x34mm 2 Phase Stepping Motor 1.8 Degree Nema 17 Stepper Motor 12V for Robot/CCTV with CE 0

Dimensions

42x42x34mm 2 Phase Stepping Motor 1.8 Degree Nema 17 Stepper Motor 12V for Robot/CCTV with CE 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	260 mN.m
Resistance	30 ohm
Inductance	37 mH
Rotor Inertia	38 g-cm²
Motor weight	0.28 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
