Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS

Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS

Nazwa marki:	Casun
Numer modelu:	42SHD4079-24BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

320mNm

Aktualny:

1,33A

Długość silnika:

34 MM

Wał:

Płaski wał frezujący o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

4 leads NEMA 17 Stepper Motor

CE ROHS NEMA 17 Stepper Motor

High Torque NEMA 17 Stepper Motor

Opis produktu

The Precision Positioning Platform of NEMA 17 in Electronic Manufacturing, Semiconductor Processing, and Optical Equipment

Used in textile machinery to control the tension of yarns, feed of fabrics, and positioning of scissors.

Features:

Bipolar or unipolar versions available
We provide tailored services and welcome contract-based production
Our engineering team will reach out within 48 hours to deliver the optimal solution
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.33 A
Holding Torque	320 mN.m
Resistance	2.7 ohm
Inductance	4.2 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

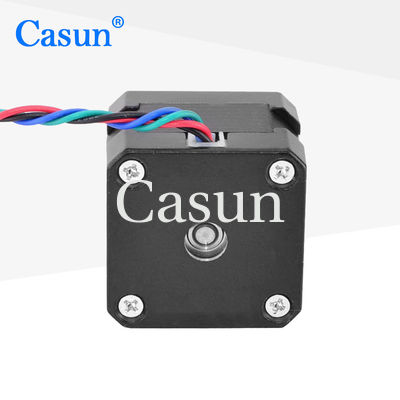

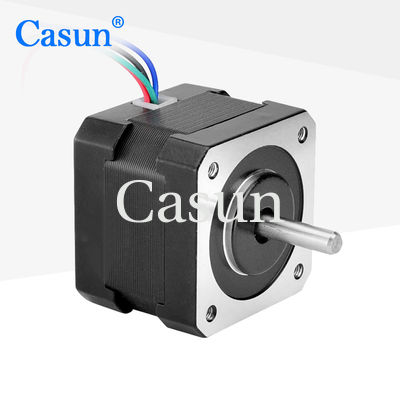

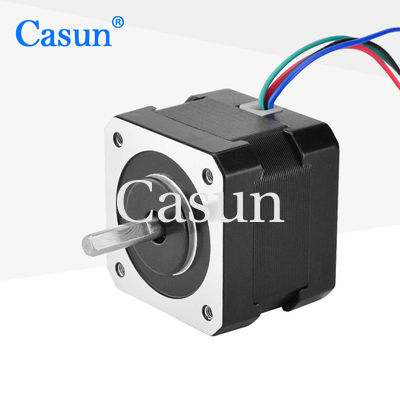

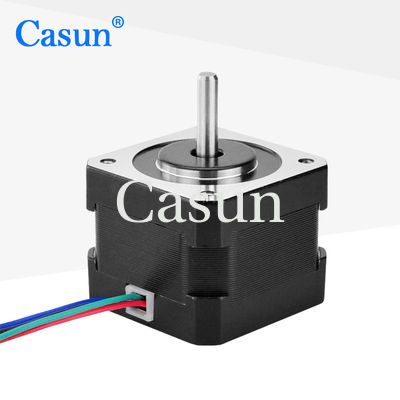

Appearance

Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS 0

Dimensions

Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
