42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine

42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine

Nazwa marki:	Casun
Numer modelu:	42SHD4277-24BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

450mNm

Aktualny:

1.2A

Długość silnika:

40mm

Wał:

Płaski wał frezujący o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

2 Phase Nema 17 Stepping Motor

1.8 Degree 2 Phase Stepping Motor

Opis produktu

The vibration and noise generated during operation are relatively low, making them suitable for use in quiet environments.

The NEMA 17 stepper motor is used for precise control of the position of the print head or laser head.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Seeking distributors!
Operational for 12 years in China, serving over 800 clients
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	450 mN.m
Resistance	3.1 ohm
Inductance	15 mH
Rotor Inertia	57 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

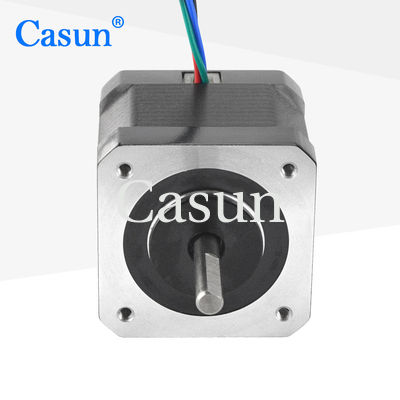

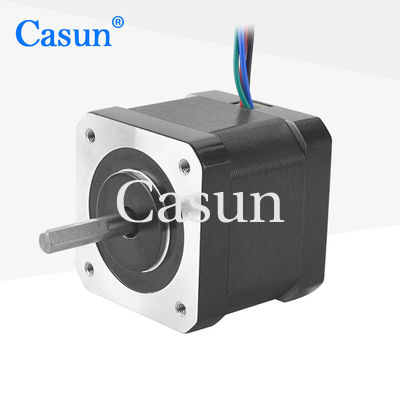

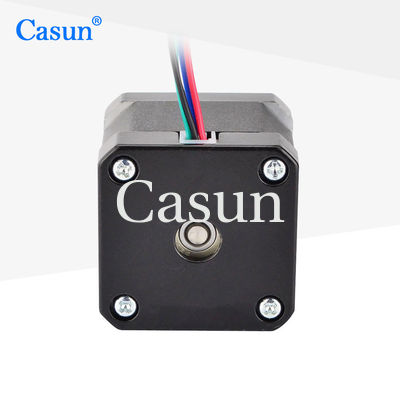

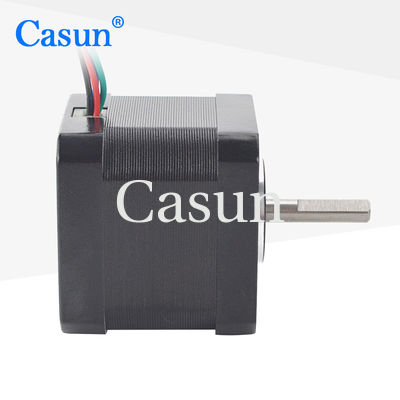

Appearance

42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine 0

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
