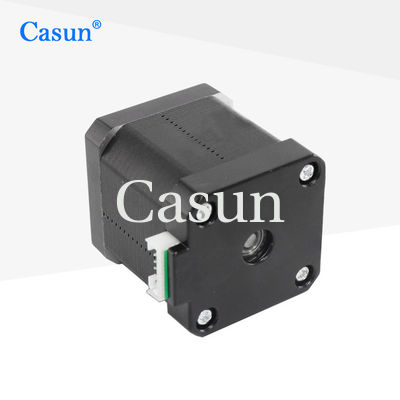

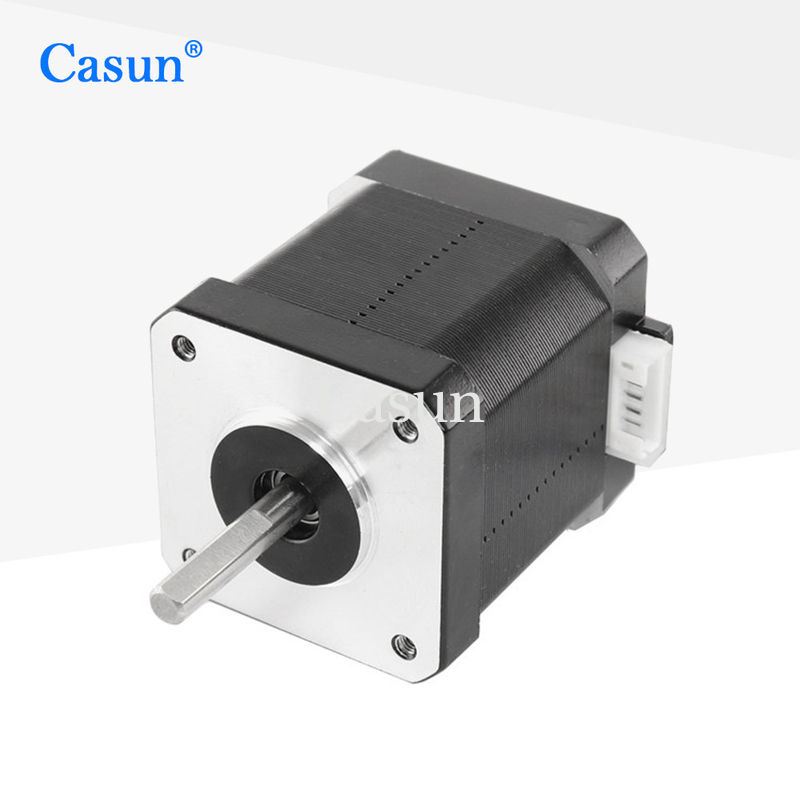

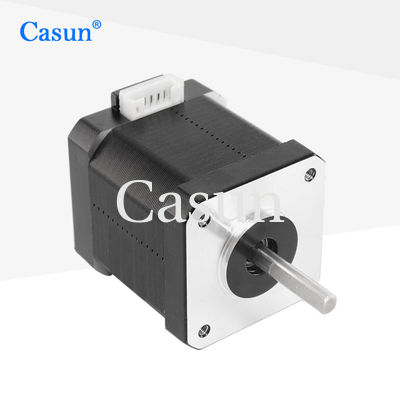

Casun 2 Phase Stepping Motor XYZ Axis NEMA17 0.52Nm

Casun 2 Phase Stepping Motor XYZ Axis NEMA17 0.52Nm

Nazwa marki:	Casun
Numer modelu:	42SHD0450-24BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

520mNm

Aktualny:

1.8A

Długość silnika:

48 mm

Wał:

Płaski wał frezujący o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

XYZ Axis NEMA17 Stepper Motor

NEMA17 Stepper Motor 0.52Nm

Casun 2 Phase Stepping Motor

Opis produktu

In a range of sizes, the 42mm Hybrid Stepper Motor Series provides strong holding torque.

To lessen vibration and achieve a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.

Features:

Versions in unipolar or bipolar are offered.
For electronic industrial equipment and high-tech industry equipment
Available in variations with a single or double shaft
High accuracy and torque
With a 12-year history in China and more than 800 clients served

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	520 mN.m
Resistance	1.8 ohm
Inductance	3.2 mH
Rotor Inertia	72 g-cm²
Motor weight	0.4 kg
Number of leads	4
Connection	Bipolar

Appearance

Casun 2 Phase Stepping Motor XYZ Axis NEMA17 0.52Nm 0

Dimensions

Casun 2 Phase Stepping Motor XYZ Axis NEMA17 0.52Nm 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
