szczegółowe informacje o produktach

Created with Pixso. Dom Created with Pixso. produkty Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm

Nazwa

Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm

Nazwa marki: Casun
Numer modelu: 35SHD0001-20
MOQ: 1 szt
Cena: $4.14-$6.98
Warunki płatności: D/A, T/T, L/C, D/P
Możliwość zaopatrzenia: 40000+szt.+miesiąc
Informacje szczegółowe
Opis produktu
Informacje szczegółowe
Miejsce pochodzenia:
Chiny
Orzecznictwo:
CE,ROHS,ISO
Krok anioła:
1,8°
Trzymanie momentu obrotowego:
100mNm
Aktualny:
0,4a
Napięcie znamionowe:
12 V
Długość silnika:
26mm
Wał:
D Długość wału 20 mm
Dostosowane:
Silnik można zaprojektować i wyprodukować na zamówienie.
Szczegóły pakowania:
Karton: 36x29x14cm
Podkreślić:

Casun NEMA 14 Stepper Motor

,

Casun 12V DC Stepper Motor

,

35X35x26mm Stepper Motor

Opis produktu

High Torque Casun 0.4A NEMA 14 Stepper Motor 35mm 12V DC Stepper Motor

35X35x26mm 0.4A 2 Phase Bipolar Hybrid 12V DC NEMA 14 Thin Stepper Motor

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

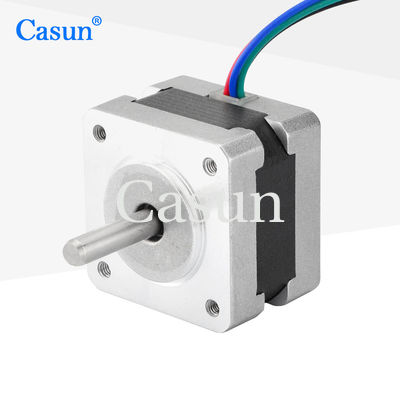

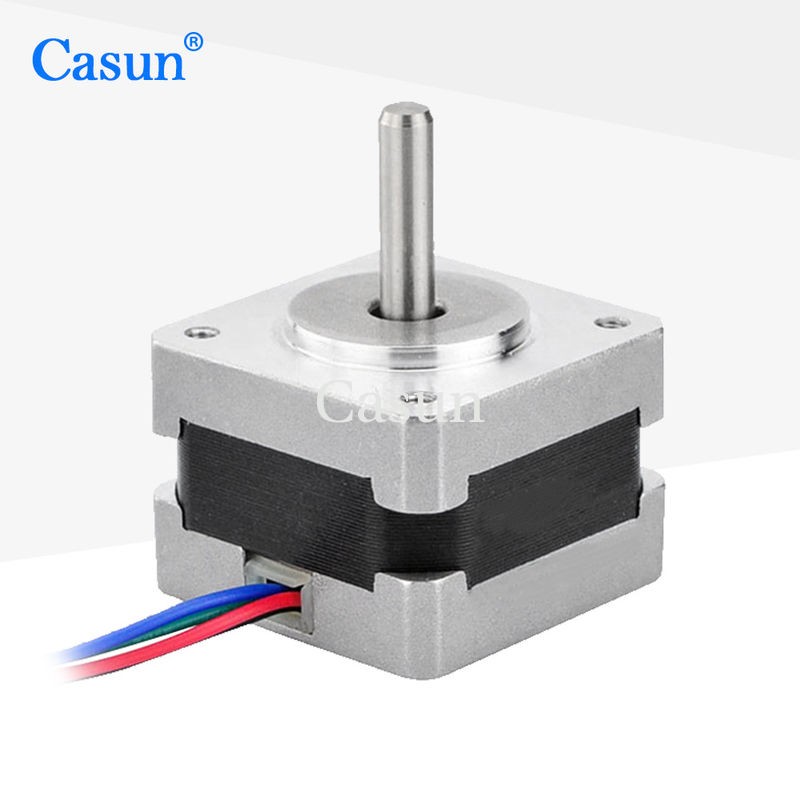

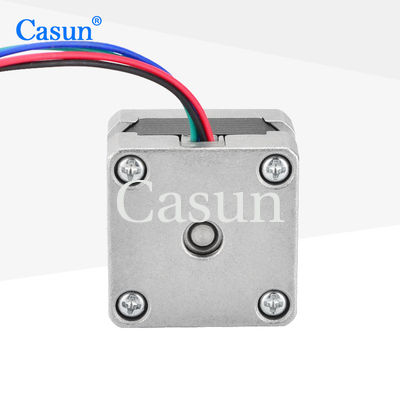

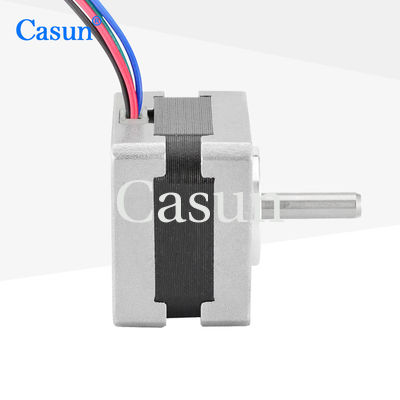

Appearance

Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 0

Dimensions

Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 1







Motor Specifications



Step Angel



1.8 °

Fram Size



35 mm

Number of Phase



2 Phase

Rated Current



0.4A

Holding Torque



100 mN.m

Resistance



20 ohm

Inductance



20 mH

Rotor Inertia



12 g-cm²

Motor weight



0.15 kg

Number of leads



4

Connection



Bipolar









Torque Curves





Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 2











Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 3 Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 4 Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 5 Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 6



Please click the "Get  a quote" button below to tell us your requirements.
