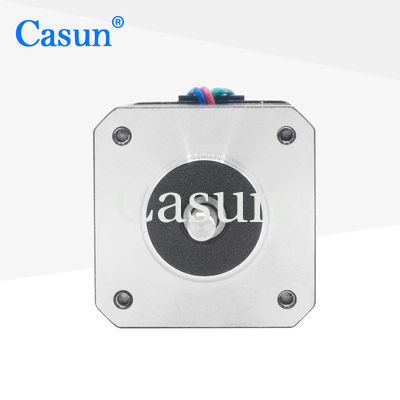

Nema17 CNC Stepper motor 42x42mm 1.8 degree 1.7Amp 550mN.m 0.46kg hybrid stepper motor with high torque

Nema17 CNC Stepper motor 42x42mm 1.8 degree 1.7Amp 550mN.m 0.46kg hybrid stepper motor with high torque

Nazwa marki:	Casun
Numer modelu:	42SHD4456-24DH
MOQ:	1 szt
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

550mNm

Aktualny:

1.7A

Długość silnika:

48 mm

Wał:

24 MM

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1.7Amp Nema17 CNC Stepper motor

0.46kg Nema17 CNC Stepper motor

Opis produktu

【35SHD4001】35x35x26mm 1.8 Degree 4 Phase Nema 14 Stepper Motor 10N.cm(70.6oz.in) for Robot

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	1.7 Amp
Holding Torque	550 mN.m
Resistance	2.2 ohm
Inductance	3.8 mH
Rotor Inertia	72 g-cm²
Motor weight	0.46kg
Number of leads	0
Connection	Bipolar

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
