0.75A 4.8V Nema 14 3D Printer Stepper Motor 35x35mm 230mN.M

0.75A 4.8V Nema 14 3D Printer Stepper Motor 35x35mm 230mN.M

Nazwa marki:	Casun
Numer modelu:	P35SHD4119-24P
MOQ:	1 szt
Cena:	$4.2-$5.2
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

230mNm

Aktualny:

0,75A

Długość silnika:

34 MM

Wał:

Okrągły wał o długości 23,69 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Nema 14 3D Printer Stepper Motor

0.75A 4.8V Nema 14

35x35mm 3D Printer Stepper Motor

Opis produktu

Nema 14 Hybrid stepper motor 35x35mm 0.75A 4.8V 230mN.m for 3D printer

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.75A
Holding Torque	230 mN.m
Resistance	6.4 ohm
Inductance	8.9mH
Rotor Inertia	14 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

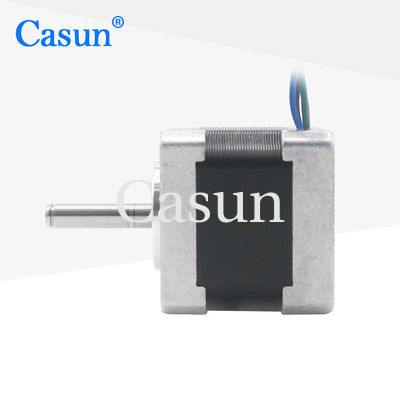

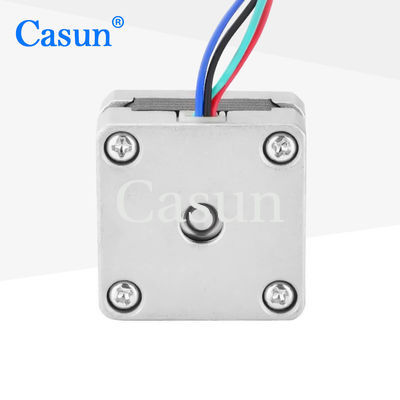

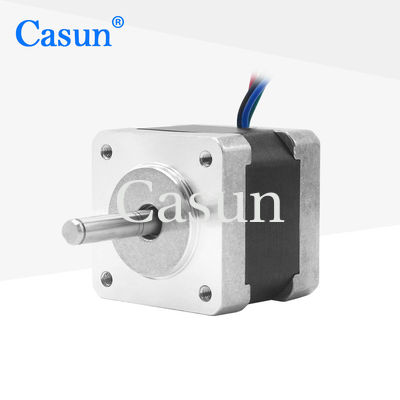

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
