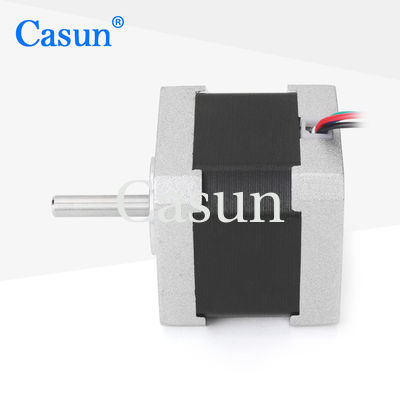

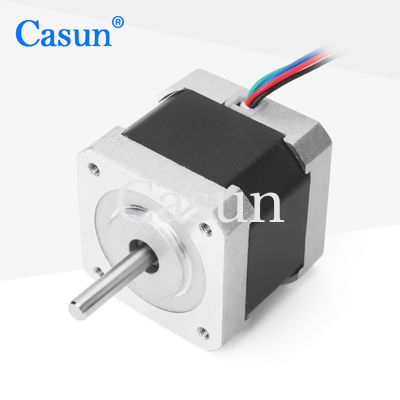

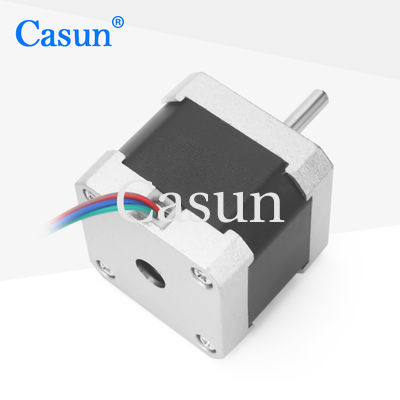

Nema 17 stepper motor voltage 3.4V 1.7Amp 400mN.m 0.3kg for Extruder 3D Printer

Nema 17 stepper motor voltage 3.4V 1.7Amp 400mN.m 0.3kg for Extruder 3D Printer

Nazwa marki:	Casun
Numer modelu:	42SHD4289-24
MOQ:	1 szt
Cena:	$4.0-$5.2
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

400mNm

Aktualny:

1.7A

Długość silnika:

40mm

Wał:

Okrągły wał o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

400mN.m Nema 17 stepper motor

3.4V Nema 17 stepper motor

1.7Amp Nema 17 stepper motor

Opis produktu

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	1.7A
Holding Torque	400mN.m
Resistance	20ohm
Inductance	3mH
Rotor Inertia	57 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
