Nema17 Low price stepping motor voltage 3.75V 1.5Amp 500mN.m 0.24kg stepping motor for Sewing machine

Nema17 Low price stepping motor voltage 3.75V 1.5Amp 500mN.m 0.24kg stepping motor for Sewing machine

Nazwa marki:	Casun
Numer modelu:	42SHD4217-24B
MOQ:	1 szt
Cena:	$5.0-$6.2
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

500mN.m

Aktualny:

1,5a

Długość silnika:

40mm

Wał:

Okrągły wał o długości 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

500mN.m Nema17 Stepping Motor

1.5Amp Nema17 Stepping Motor

3.75V Nema17 Stepping Motor

Opis produktu

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	1.5A
Holding Torque	500mN.m
Resistance	2.2ohm
Inductance	5mH
Rotor Inertia	57 g-cm²
Motor weight	0.24kg
Number of leads	4
Connection	Bipolar

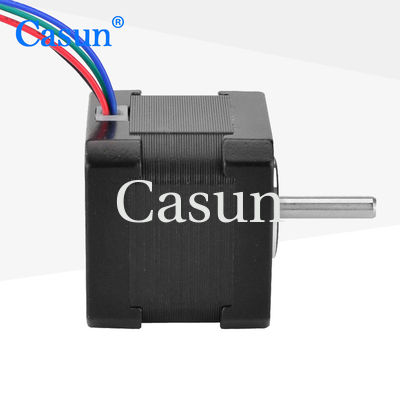

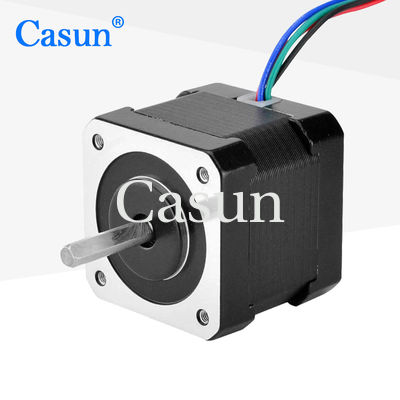

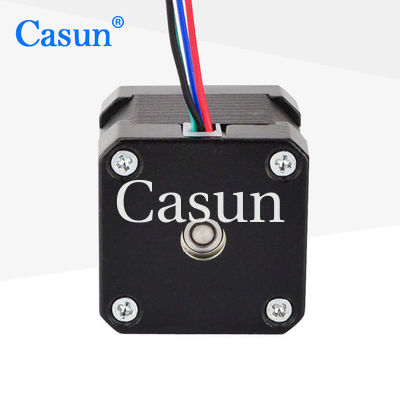

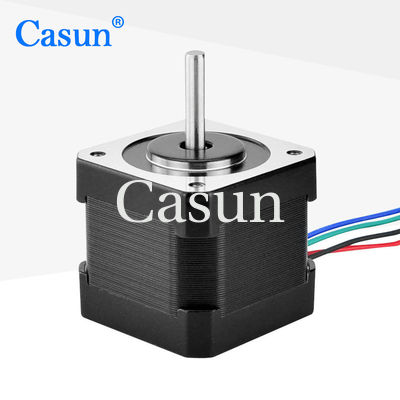

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
