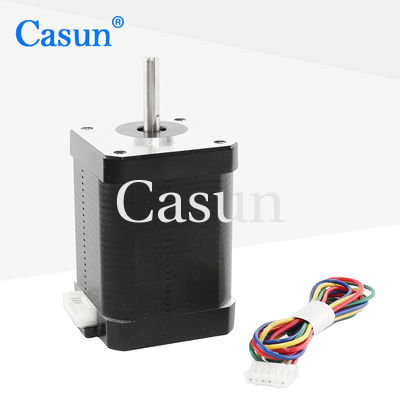

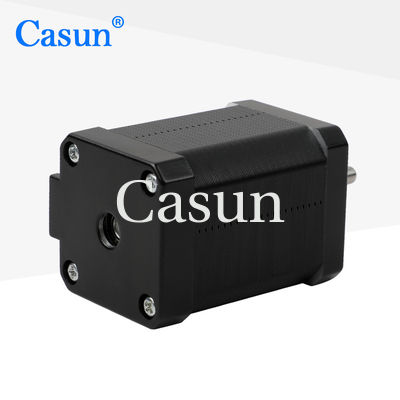

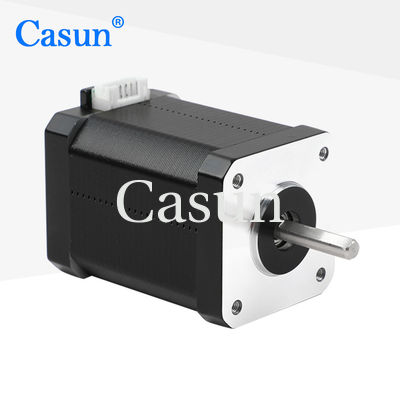

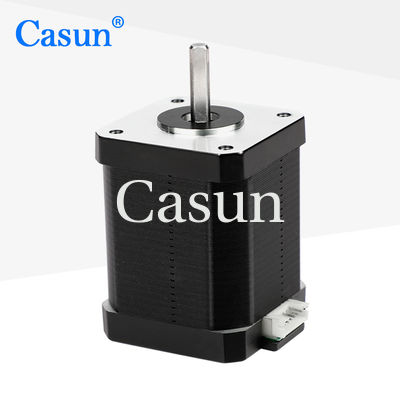

Nema17 4 Lead Stepper Motor 42x42mm 60mm 1.68A Motor for CNC XYZ 3D Printer Motor

Nema17 4 Lead Stepper Motor 42x42mm 60mm 1.68A Motor for CNC XYZ 3D Printer Motor

Nazwa marki:	Casun
Numer modelu:	42SHD0824-20B
MOQ:	1 szt
Cena:	$8.92-$9.96
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

650mNm

Aktualny:

1,68A

Długość silnika:

60mm

Wał:

Okrągły wał o długości 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1.68A Nema17 Stepper Motor

42x42mm Nema17 Stepper Motor

XYZ Nema17 Stepper Motor

Opis produktu

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	650 mN.m
Resistance	2.1ohm
Inductance	6.2mH
Rotor Inertia	102g-cm²
Motor weight	0.48 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
