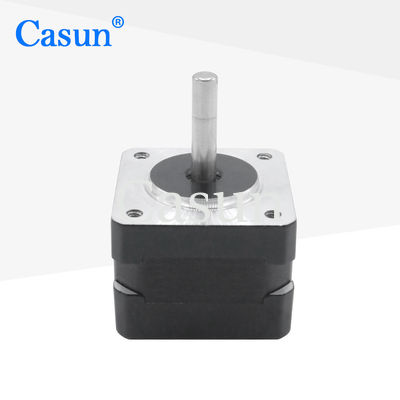

Step motor nema14 35x35x40mm 350mN.m micro stepper motor with high torque

Step motor nema14 35x35x40mm 350mN.m micro stepper motor with high torque

Nazwa marki:	Casun
Numer modelu:	35SHD0003-23H
MOQ:	1 szt
Cena:	$4-$5.2
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

110mNm

Aktualny:

0,4a

Długość silnika:

26mm

Wał:

Okrągły trzonek o długości 23 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.4A NEMA 14 Stepper Motor

35x35x26mm NEMA 14 Stepper Motor

3D Printer Parts NEMA 14

Opis produktu

35x35x40mm 0.4A Casun Stepper Motor Nema 14 Mini Stepper Motor For Medical beauty equipment

Nema 14 Casun Stepper Motor 2 Phase 350mN.m 0.4A 35x35x40mm Stepping Motor for 3D Printer Printer Parts

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	350 mN.m
Resistance	22ohm
Inductance	8mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	0
Connection	Bipolar

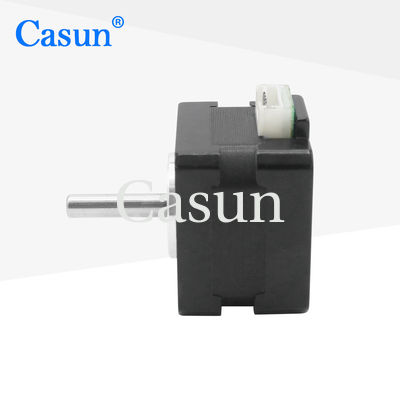

Appearance

Dimensions

The Nema 14 Casun stepper motor you mentioned is a specific type of stepper motor that belongs to the NEMA (National Electrical Manufacturers Association) standard size 14 category. Stepper motors are widely used in various applications that require precise position control, such as 3D printers, CNC machines, robotics, and automation systems.

Stepper motors like the Nema 14 Casun are commonly controlled using specialized motor drivers or controllers. These drivers provide the necessary electrical signals to energize the motor windings in the correct sequence, allowing precise control over the motor's position and speed.

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
