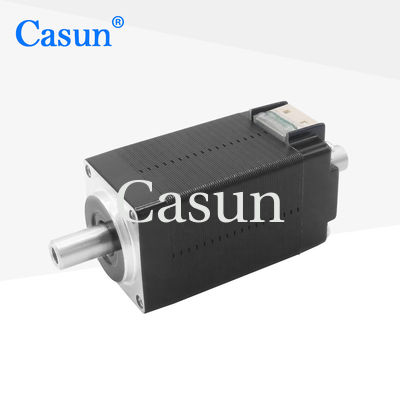

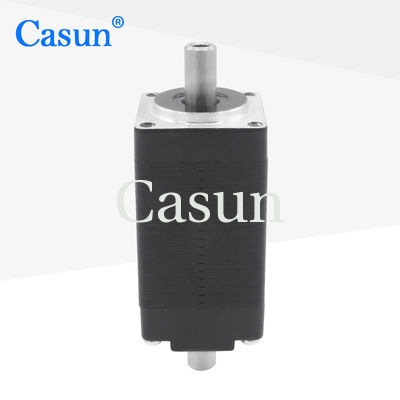

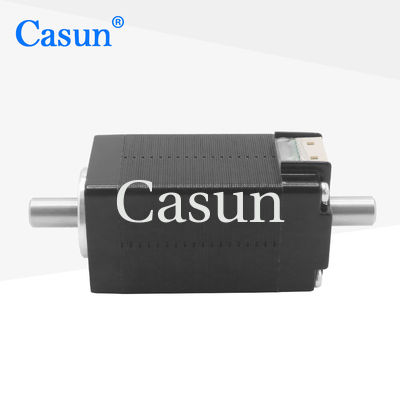

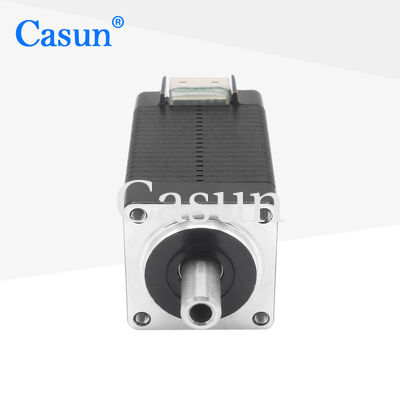

0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine

0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine

Nazwa marki:	Casun
Numer modelu:	20SHD0250-10SK
MOQ:	1 szt
Cena:	$6.86-$10.5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Kąt krokowy:

1,8 stopnia

Faza:

Napięcie znamionowe:

5,4 V

Prąd prąd:

0,6A

Trzymanie momentu obrotowego:

32mNm

Moment hamujący:

2mNm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.6A 5.4V Dual Shaft Stepper Motor

Dual Shaft Stepper Motor Nema 11

38mm Stepper Motor Nema 11

Opis produktu

28x28x38mm 0.6A Motor paso a paso 5.4V Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine

The 20mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	32 mN.m
Resistance	9.0 Om
Inductance	3.2mH
Rotor Inertia	3.8 g-cm²
Motor weight	0.1 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Casun Model	General Model	Angle	Motor Length	Rated Current	Holding Torque
B20SHD4353-10	8HS11-0204S	1.8°	28mm	0.2A	0.016 N.m
	8HS12-0506S	1.8°	28mm	0.5A	0.018N.m
20SHD0501-10	8HS13-0604S	1.8°	34.3mm	0.6A	0.018N.m
	8HS15-0304S	1.8°	38mm	0.3A	0.03N.m
20SHD4255-10X	8HS15-0604S	1.8°	38mm	0.6A	0.04N.m
20SHD4101-20		1.8°	42mm	0.8A	0.03N.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine 1

Please click the "Get a quote" button below to tell us your requirements.
