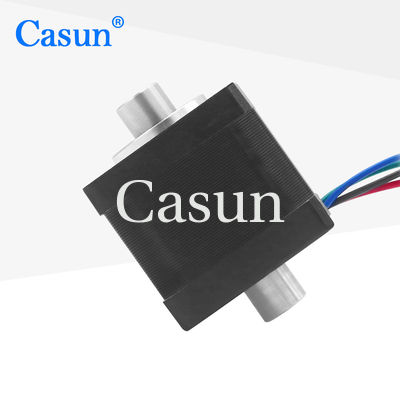

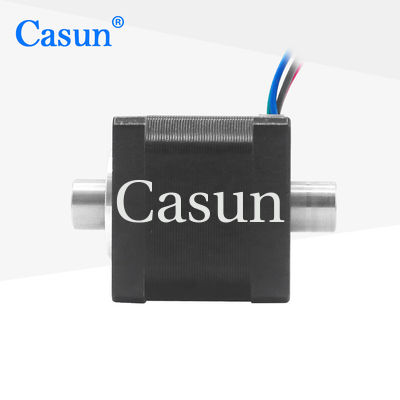

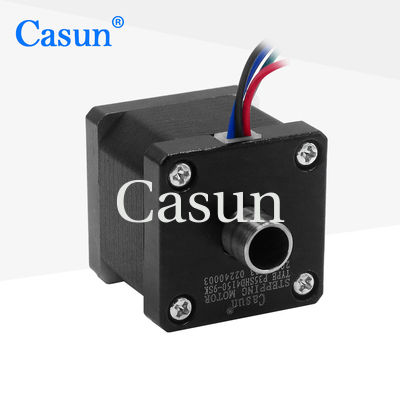

0.19N.M 1A Hollow Shaft Stepper Motor Nema 14 34mm Body 2 Phase 1.8 Deg

0.19N.M 1A Hollow Shaft Stepper Motor Nema 14 34mm Body 2 Phase 1.8 Deg

Nazwa marki:	Casun
Numer modelu:	P35SHD4150-9SKH
MOQ:	1 szt
Cena:	$4.14-$6.98
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

190mNm

Aktualny:

1,0 A

Długość silnika:

34 MM

Wał:

Podwójna pusta długość 9 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1A Hollow Shaft Stepper Motor

0.19N.M Hollow Shaft Stepper Motor

Stepper Motor Nema 14 34mm

Opis produktu

The 35mm dual axis hollow stepper motor has advantages such as hollow structure, high accuracy, low noise, and fast response

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Expert in professional drivetrain solutions
Hybrid stepper building
Available in variations with a single or double shaft
Expert manufacturing research and development
Upon request, modifications

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	190 mN.m
Resistance	3.5 ohm
Inductance	3.6 mH
Rotor Inertia	20 g-cm²
Motor weight	0.18 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
