17HS24-0644S NEMA 17 FOUR-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 0.64A TEXTILE MACHINE

17HS24-0644S NEMA 17 FOUR-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 0.64A TEXTILE MACHINE

Nazwa marki:	Casun
Numer modelu:	42SHD6823-24BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

650mNm

Aktualny:

1.2A

Długość silnika:

60mm

Wał:

Płaski wał frezujący o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

17HS24-0644S STEPPER MOTOR

NEMA 17 STEPPER MOTOR

Opis produktu

The NEMA 17 stepper motor is used to control various stages of the packaging process, such as filling, sealing, and packaging.

Compared to other types of motors, NEMA 17 stepper motors typically have lower costs.

Features:

Wanted dealers
For high-tech industry and electronic industry equipment
Professional drivetrain solution specialist
Established in China for 12 years and has served more than 800 customers
We offer custom services and accept contract manufacturing

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	4 Phase
Rated Current	1.2 A
Holding Torque	650 mN.m
Resistance	6.0 ohm
Inductance	7.0 mH
Rotor Inertia	102 g-cm²
Motor weight	0.50 kg
Number of leads	6
Connection	Bipolar

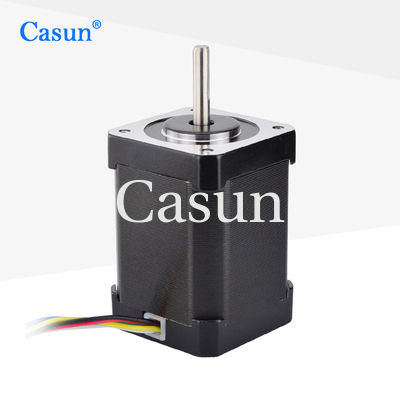

Appearance

17HS24-0644S NEMA 17 FOUR-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 0.64A TEXTILE MACHINE 0

Dimensions

17HS24-0644S NEMA 17 FOUR-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 0.64A TEXTILE MACHINE 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
