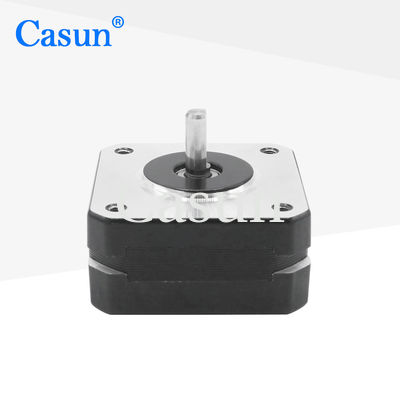

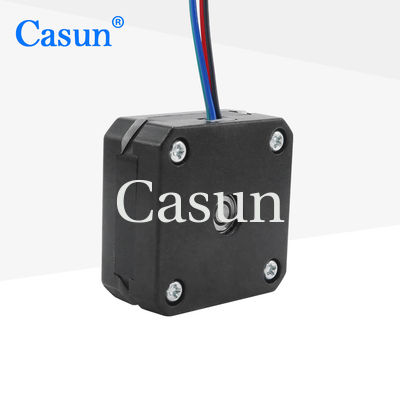

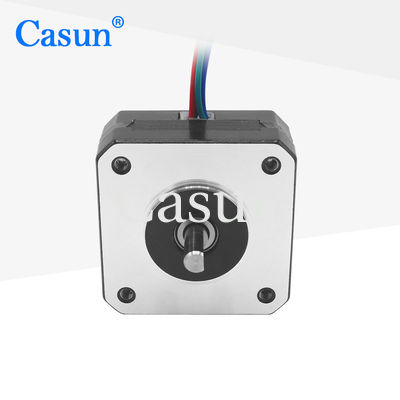

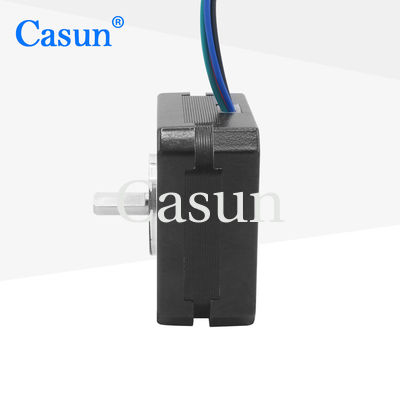

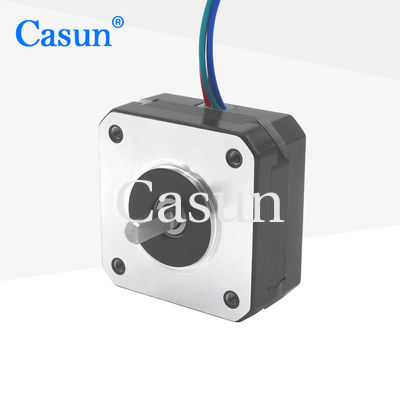

China hybrid Short Body Nema 17 Bipolar Stepper Motor 20mm body 0.8A 100mN.m DIY CNC Extruder

China hybrid Short Body Nema 17 Bipolar Stepper Motor 20mm body 0.8A 100mN.m DIY CNC Extruder

Nazwa marki:	Casun
Numer modelu:	42SHD4952-14BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1.8

Trzymanie momentu obrotowego:

100mNm

Aktualny:

0,8A

Długość silnika:

20mm

Wał:

Płaski wał frezujący o długości 13,6 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.8A Nema 17 Bipolar Stepper Motor

Opis produktu

Provided an economical solution for achieving basic motion control requirements.

Mechanical processing, 3D printing, robotics technology.

Features:

Provide "multiple international certifications"
Our engineering team will reach out within 48 hours to present the optimal solution
Affer custom services
Professional drivetrain solution specialist
Seeking distributors

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	100 mN.m
Resistance	3.3 ohm
Inductance	3.0 mH
Rotor Inertia	15 g-cm²
Motor weight	0.14 kg
Number of leads	4
Connection	Bipolar

Appearance

China hybrid Short Body Nema 17 Bipolar Stepper Motor 20mm body 0.8A 100mN.m DIY CNC Extruder 0

Dimensions

China hybrid Short Body Nema 17 Bipolar Stepper Motor 20mm body 0.8A 100mN.m DIY CNC Extruder 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
