NEMA 23 Hybrid Stepper Motor 575754mm 2.0A 1.2N.M With CE ROHS

NEMA 23 Hybrid Stepper Motor 575754mm 2.0A 1.2N.M With CE ROHS

Nazwa marki:	Casun
Numer modelu:	57SHD4407-30B
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

1200mNm

Aktualny:

2,0A

Długość silnika:

54 mm

Wał:

Płaski wał frezujący o długości 30 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

NEMA 23 Hybrid Stepper Motor

Hybrid Stepper Motor 2.0A

Opis produktu

There will be no out of step phenomenon and no additional feedback control is required, with excellent static and dynamic stability.

Only when it needs to rotate will it consume electricity, and the power consumption in standby mode is very low, saving energy.

Features:

High accuracy and torque
For electronic industrial equipment and high-tech industry equipment
Within 48 hours, one of our engineers will contact you with the best option
With a 12-year history in China and more than 800 clients served
High accuracy and torque

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.0 A
Holding Torque	1200 mN.m
Resistance	1.4 ohm
Inductance	5.0 mH
Rotor Inertia	260 g-cm²
Motor weight	0.6 kg
Number of leads	4
Connection	Bipolar

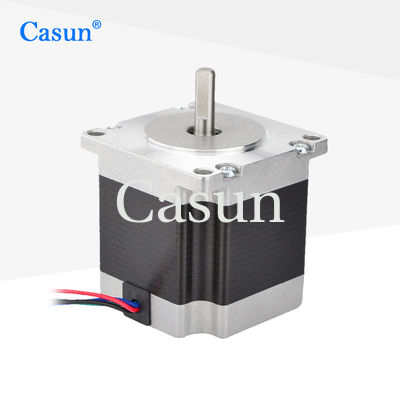

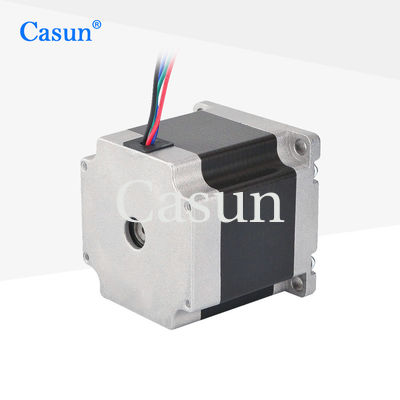

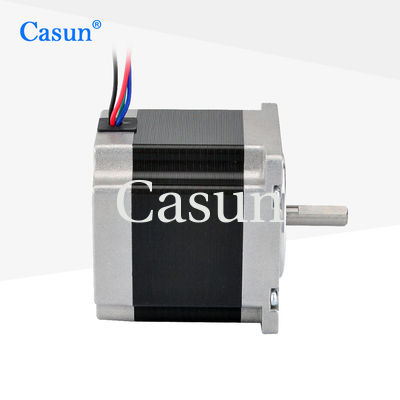

Appearance

NEMA 23 Hybrid Stepper Motor 57*57*54mm 2.0A 1.2N.M With CE ROHS 0

Dimensions

NEMA 23 Hybrid Stepper Motor 57*57*54mm 2.0A 1.2N.M With CE ROHS 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
