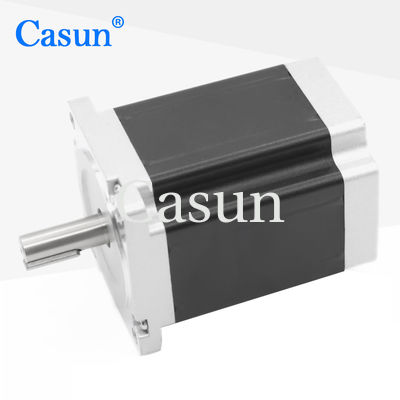

Motor Step 5.5A 12N.M 15kg NEMA 34 Stepper Motor For CNC Engraving Machine

Motor Step 5.5A 12N.M 15kg NEMA 34 Stepper Motor For CNC Engraving Machine

Nazwa marki:	Casun
Numer modelu:	86SHD4505-37
MOQ:	1 szt
Cena:	$43-$48
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

12Nm

Aktualny:

5,5A

Długość silnika:

149 mm

Wał:

Długość 37 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

5.5A NEMA 34 Stepper Motor

NEMA 34 Stepper Motor For Engraving Machine

Opis produktu

Nema34 Stepper Motor 86x86mm 112mm 5.5A 12N.m 5kg Motor High Precision Motor for CNC Engraving Machine

Motor Specifications

Step Angel	1.8 °
Fram Size	86mm
Number of Phase	2 Phase
Rated Current	5.5A
Holding Torque	12N.m
Resistance	1.1ohm
Inductance	8mH
Rotor Inertia	3600g-cm²
Motor weight	5 kg
Number of leads	4
Connection	Bipolar

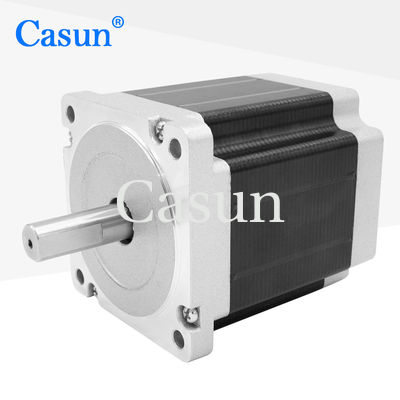

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
