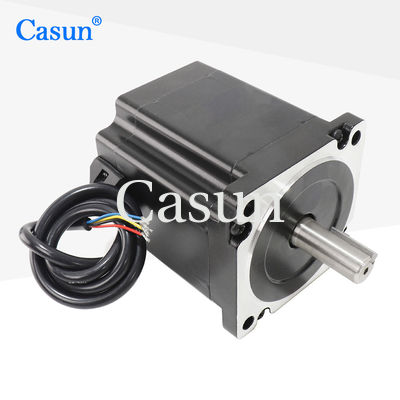

98mm Length Hybrid Stepper Motor Two Phase Nema34 86X86X98mm For Cnc Stepper

98mm Length Hybrid Stepper Motor Two Phase Nema34 86X86X98mm For Cnc Stepper

Nazwa marki:	Casun
Numer modelu:	86SHD4201-37
MOQ:	1 szt
Cena:	$43-$48
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

5,6 Nm

Aktualny:

Długość silnika:

98MM

Wał:

Długość 37 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

98mm Length Hybrid Stepper Motor

Two Phase Hybrid Stepper Motor

Hybrid Stepper Motor Nema34

Opis produktu

Hybrid stepper motor two phase nema34 86X86X98mm for cnc stepper

The Nema34 stepper motor is a type of high-torque stepper motor that is commonly used in CNC machines, 3D printers, robotics, and other precision motion control applications. It has a standard flange size of 86x86mm and a length of 98mm, and is capable of delivering up to 5.6N.m of torque at a current of 5.5A.

The Nema34 stepper motor is designed to operate at high efficiency, with low power consumption and minimal noise and vibration. It is also designed to be durable and reliable, with a long service life and minimal maintenance requirements.

Motor Specifications

Step Angel	1.8 °
Fram Size	86mm
Number of Phase	2 Phase
Rated Current	4A
Holding Torque	5.6N.m
Resistance	-ohm
Inductance	-mH
Rotor Inertia	-g-cm²
Motor weight	2.9 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

customization options for motors include special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and other features.Customization of motors can also include changes to the motor's performance characteristics, such as torque, speed, and efficiency. This may involve adjustments to the winding parameters or other components of the motor, as well as testing and validation to ensure that the custom motor meets the customer's performance requirements.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
