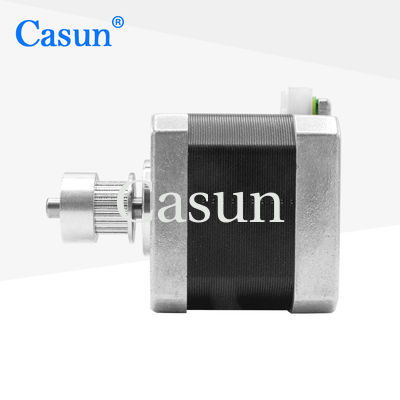

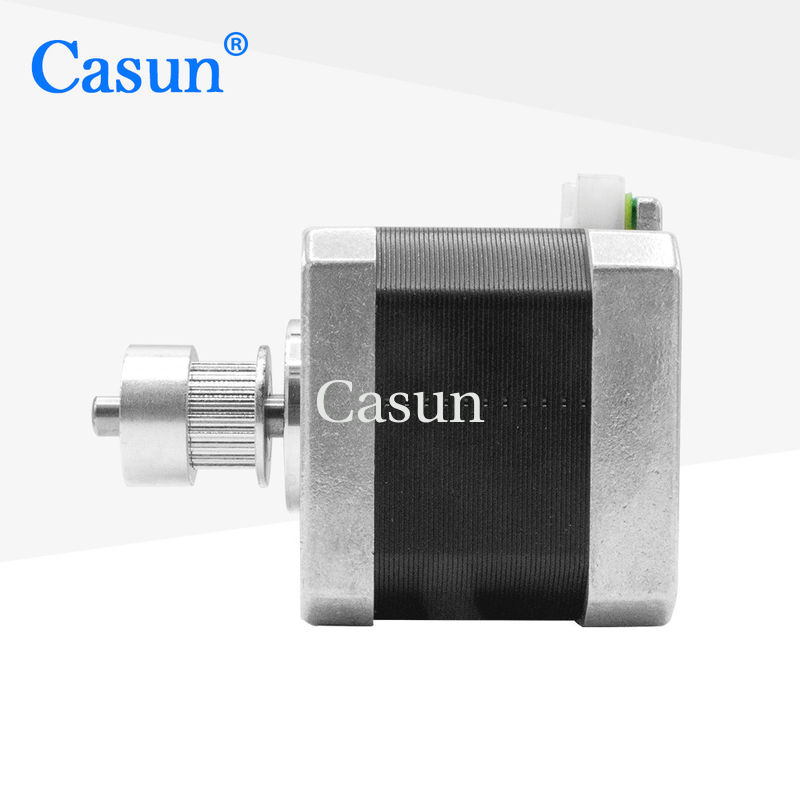

Nema 17 Hybrid Stepper Motor 42x40mm 500mN.M With Synchronous Wheel

Nema 17 Hybrid Stepper Motor 42x40mm 500mN.M With Synchronous Wheel

Nazwa marki:	Casun
Numer modelu:	42SHD0217-24A
MOQ:	1 szt
Cena:	$3.48-$4.89
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

500mN.m

Aktualny:

1,5a

Długość silnika:

40mm

Wał:

Długość 24mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Nema 17 Hybrid Stepper Motor

Hybrid Stepper Motor With Synchronous Wheel

500mN.M Hybrid Stepper Motor

Opis produktu

the Nema17 stepper motor is a versatile and reliable motor that offers a range of features and benefits for precision motion control applications. Its high precision, efficiency, and torque make it an ideal choice for 3D printers, engraving machines, and other applications that require precise and reliable motion control.

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	1.5A
Holding Torque	500mN.m
Resistance	-ohm
Inductance	-mH
Rotor Inertia	- g-cm²
Motor weight	0.24kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
