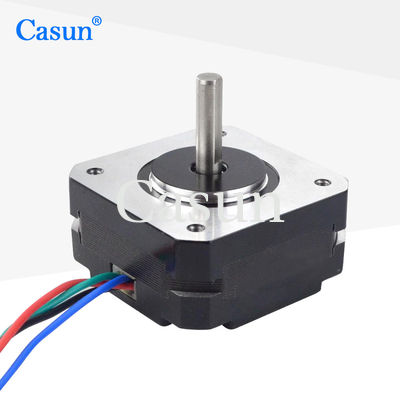

17HS08-1004S 1A Nema 17 Stepper Motor 42*42*20mm 130mN.M For Stage Light

17HS08-1004S 1A Nema 17 Stepper Motor 42*42*20mm 130mN.m black color for stage light

Stepper Motor NEMA 17 3.5V 1A available in a variety of resolutions

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

• Bipolar or unipolar versions available

• Hybrid stepper construction

• Available in single or double shaft versions

• CE and RoHS approved

• Customizations on request

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions,,Travel ,Liear travel per step,etc.
