0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light

0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light

Nazwa marki:	Casun
Numer modelu:	39SHD0609-10H
MOQ:	1 szt
Cena:	$3.56-$4.80
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

120mNm

Aktualny:

0,28A

Długość silnika:

25mm

Wał:

Okrągły wał o długości 10 mm

Marka:

CASUN

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.28A Nema 16 Stepping Motor

120mN.M Nema 16 Stepping Motor

Opis produktu

Motori per stadi 0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.m for stage light

When compared to other motor types, the 39mm motor produces less noise, which can have a positive effect on both the environment and users.

In some low noise application circumstances, it is widely employed.

Features:

Bipolar or unipolar versions available
Over 800 clients have been handled over its twelve years of operation in China
Available in single or double shaft versions
Ten-year warranty and secure shopping
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	39 mm
Number of Phase	2 Phase
Rated Current	0.28 A
Holding Torque	120 mN.m
Resistance	44 ohm
Inductance	20 mH
Rotor Inertia	15 g-cm²
Motor weight	0.17 kg
Number of leads	4
Connection	Bipolar

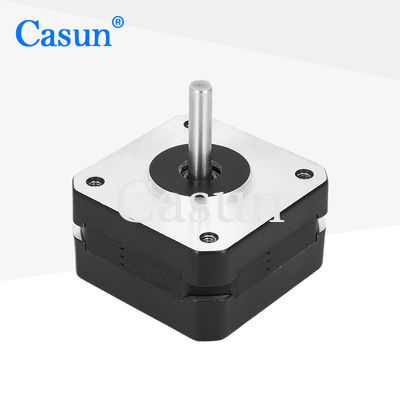

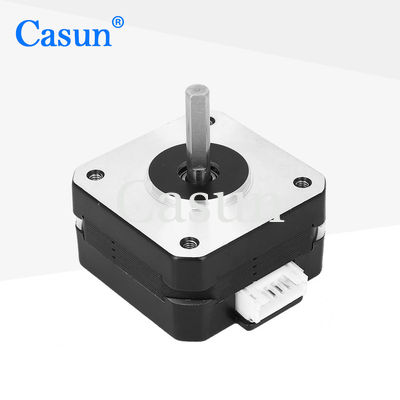

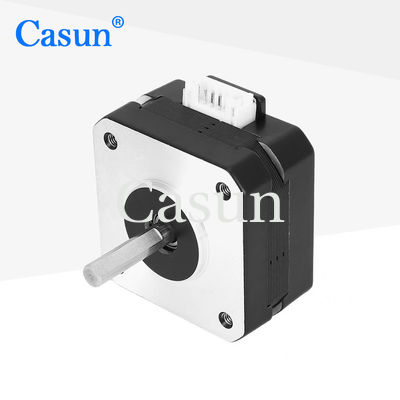

Appearance

Dimensions

0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
39SHD0001-20	100mN.m	1.8°	20mm	Round Shaft 20mm	0.48A
39SHD0504-20	100mN.m	1.8°	22mm	Round Shaft 20mm	0.4A
39SHD0611-20	200mN.m	1.8°	25mm	Round Shaft 20mm	0.4A
39SHD0302-20	220mN.m	1.8°	34mm	Round Shaft 20mm	0.4A
39SHD0401-24	220mN.m	1.8°	38mm	Round Shaft 24mm	0.4A
39SHD0801-24B	220mN.m	1.8°	48mm	D Shaft 24mm	0.4A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
