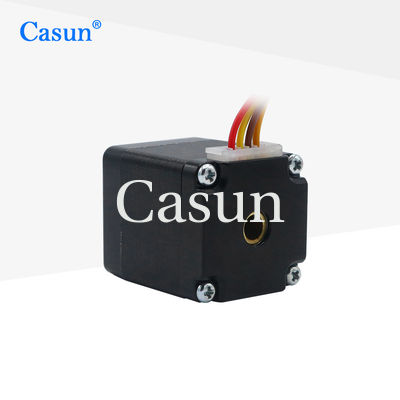

1.8 Degree Hollow Shaft NEMA 11 Micro Stepper Motor For Medical Machine Robot Camera

1.8 Degree Hollow Shaft NEMA 11 Micro Stepper Motor For Medical Machine Robot Camera

Nazwa marki:	Casun
Numer modelu:	28SHD4501-K1
MOQ:	1 szt
Cena:	$4.14-$6.98
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

120mNm

Aktualny:

0,67A

Długość silnika:

51,5 mm

Wał:

Dziurawy

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

NEMA 11 Micro Stepper Motor

Hollow Shaft Micro Stepper Motor

Opis produktu

1.8 Degree Hollow Shaft NEMA 11 Micro Stepper Motor For Medical Machine Robot Camera

By precisely controlling the frequency and size of pulse signals, precise position control can be achieved, suitable for applications that require high-precision positioning.

Medical and scientific equipment, as well as household appliances, image scanners, and car navigation.

Features:

We provide customized services and are open to contract manufacturing
Our engineers will contact you within 48 hours to offer the optimal solution
Dealers wanted!
Professional research and development manufacturing
Each model of our stepper motor is suitable for various scenarios

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	120 mN.m
Resistance	9.5 ohm
Inductance	6.8 mH
Rotor Inertia	18 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

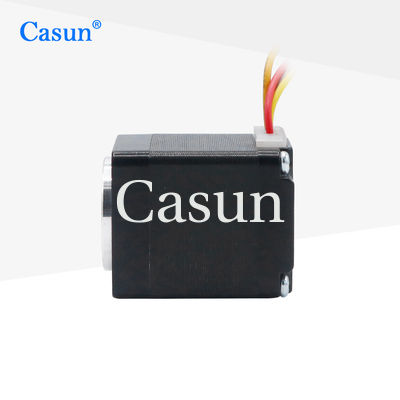

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
