1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder

1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder

Nazwa marki:	Casun
Numer modelu:	F42SHD4229-24BQH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

400mNm

Aktualny:

1,68A

Długość silnika:

40mm

Wał:

Płaski wał frezujący o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

NEMA 17 Waterproof Stepper Motor

1.68A Waterproof Stepper Motor

40mm Body Waterproof Stepper Motor

Opis produktu

1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder

The closed-loop motor reduces the complexity of manual debugging and simplifies the installation and debugging process of the system.

Robot motion control, CNC machine tools, medical equipment, automated warehousing systems.

Features:

Every stepper motor model has use in a variety of situations
Offer custom services
Available in single or double shaft versions
We possess expertise in drivetrain solutions
High-tech industry and electronic industry equipment must possess "multiple international certifications"

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	400 mN.m
Resistance	1.65 ohm
Inductance	3.2 mH
Rotor Inertia	57 g-cm²
Motor weight	0.4 kg
Number of leads	4
Protection class	IP65

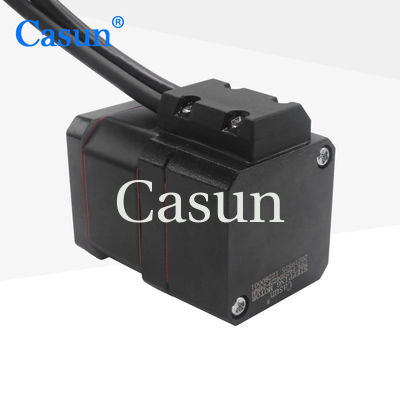

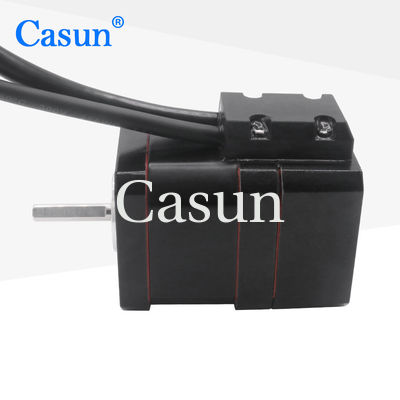

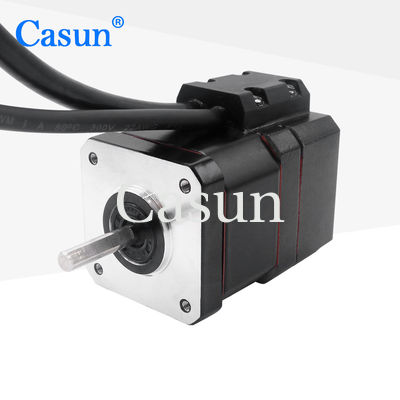

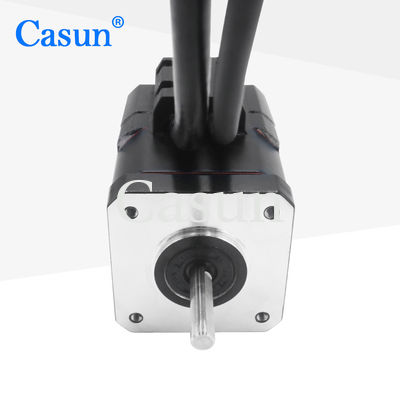

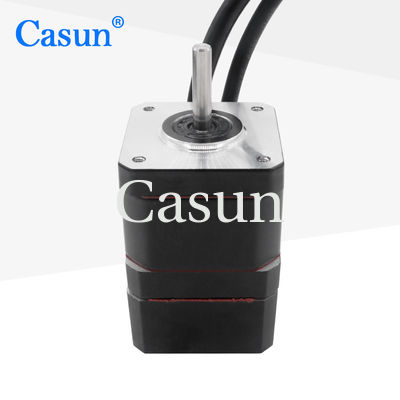

Appearance

1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder 0

Dimensions

1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
