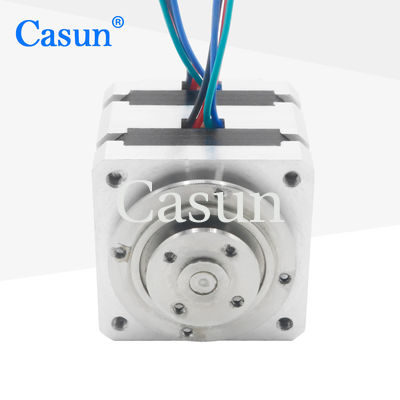

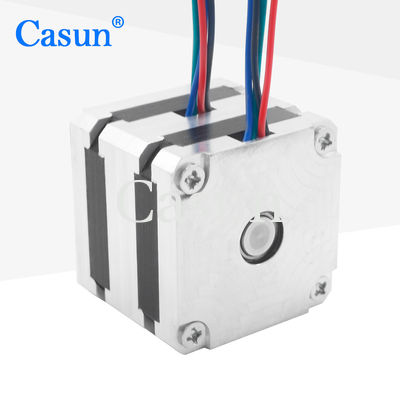

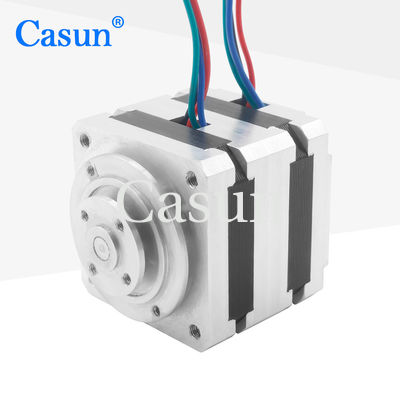

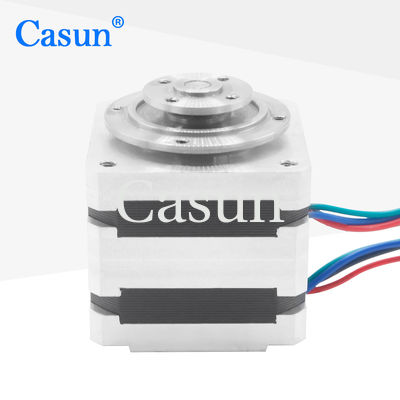

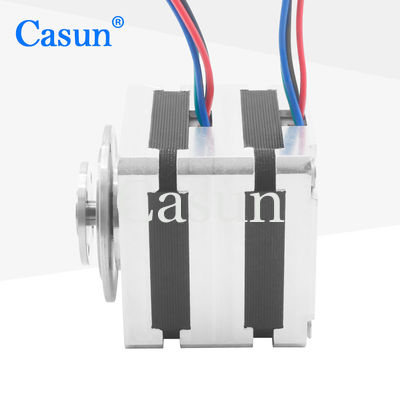

Sliver Color Nema 16 stepper Motor 150mN.M 8 V Multilayer For Medical Device

Sliver Color Nema 16 stepper Motor 150mN.M 8 V Multilayer For Medical Device

Nazwa marki:	Casun
Numer modelu:	E39D40044004-05
MOQ:	1 szt
Cena:	$18-$23
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	100000 + szt. + Miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Woltaż:

8 V

Wał:

Okrągły wał o długości 9,2 mm

Trzymanie momentu obrotowego:

150mNm

Aktualny:

0,8A

Długość silnika:

35mm

Faza:

Opór:

10Ohm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Sliver Color Nema 16 Stepper Motor

Nema 16 Stepper Motor Multilayer

Opis produktu

Stufe Stufe New Types Sliver Color Nema 16 150mN.M 8 V Multilayer Motor For Medical Device

Multisport motor nema16 hybrid stepper 39x39x35mm 150mN.m

These are the details of the Nema16 stepper motor you mentioned:

Step angle is 1.8 degrees every step, and the motor is 39 x 39 mm in size.

Current rating: 0.8A

150 mN.m. of holding torque

0.22 kilograms (4.2 oz)

This is a motor independently developed and patented by our company.

E39 series multi-motion stepping motor is a new type of patented stepping motor (patent number: ZL2013 2 0370752.8).
Non-interfering, precise structure, shaft runout less than 0.025, suitable for industrial robots, stage lights and other automation control fields.

Motor Specifications

Step Angel	1.8 °
Fram Size	39mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	150mN.m
Resistance	30ohm
Inductance	45mH
Rotor Inertia	20 g-cm²
Motor weight	0.12kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
