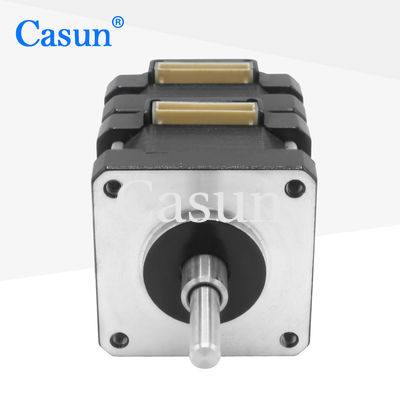

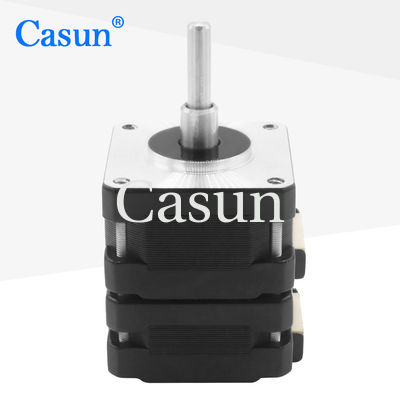

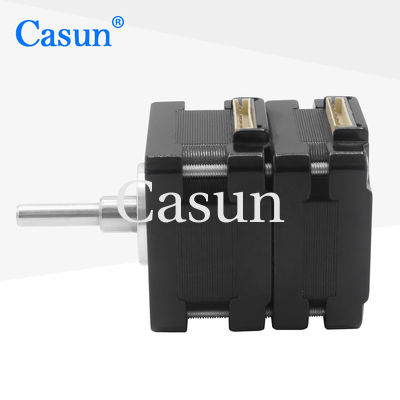

Multilayer Nema 16 Stepper Motor Black Color For Medical Device ROHS ISO Certifications

Multilayer Nema 16 Stepper Motor Black Color For Medical Device ROHS ISO Certifications

Nazwa marki:	CASUN
Numer modelu:	E39C-05
MOQ:	1szt-10szt
Cena:	US $11.00 - 14.00/ Piece
Warunki płatności:	L/C, D/A, D/P, T/T
Możliwość zaopatrzenia:	100000 + szt. + Miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Kąt kroku:

1,8 stopnia

Faza:

Napięcie znamionowe:

10.4V

Prąd prąd:

0,4a

Trzymanie momentu obrotowego:

200mNm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 38x29x14m

Podkreślić:

Multilayer Nema 16 Stepper Motor

Black Nema 16 Stepper Motor

Opis produktu

Stufe Stufe CASUN R&D Multilayer Nema 16 Stepper Motor Black Color For Medical Device With CE ROHS ISO Certifications

Motor multilayer 39*44.6mm, 0.4A Bipolar Nema 16 Stepper Motor for Medical Device 2 Phase 10.4V

Medical device 2 Phase-10.4V Nema 16 Bipolar 1.8 degree Multilayer Stepping Motor 39*39*44.5mm 200mN.m

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	44.5 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	200 mN.m
Resistance	26 ohm
Inductance	22 mH
Rotor Inertia	- g-cm²
Motor weight	- kg
Number of leads	4
Connection	Bipolar

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Stepper Motor,BLDC Motor

4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
