0.4A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment

0.4A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment

Nazwa marki:	Casun
Numer modelu:	E42S-01-122440-300
MOQ:	1 szt
Cena:	$18-$23
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

200mNm

Aktualny:

0,4a

Długość silnika:

57,5 mm

Wał:

Długość 12/24/40mm

Woltaż:

12 V

Taśma:

Wielowarstwowy

Kolor:

Czarny

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.4A Bipolar Stepper Motor

Bipolar Stepper Motor For Automation Equipment

Opis produktu

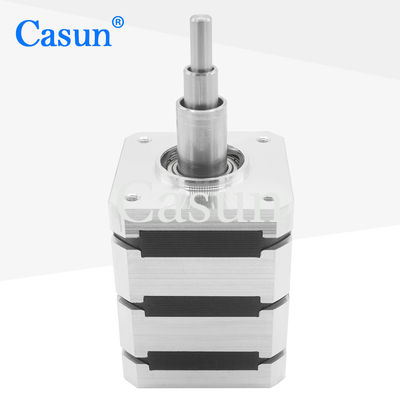

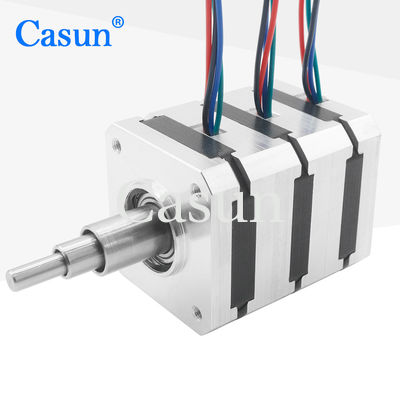

nema17 hybrid stepper motor 42x42x57.5mm 200mN.m Multisport motor

The Nema17 stepper motor you described has the following specifications:

Step angle: 1.8 degrees per step
Motor size: 42 x 42mm
Rated current: 0.4A
Holding torque: 2000mN.m
Weight: 0.3kg

Movement method:
1. The output shaft A can rotate (controlled by port 2);
2. The output shaft B can rotate (controlled by port 1).
Note: The above two motion modes are controlled by different ports.
Each motion mode can run independently at the same time without interfering with each other.

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	200mN.m
Resistance	30ohm
Inductance	45mH
Rotor Inertia	20 g-cm²
Motor weight	0.3kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
