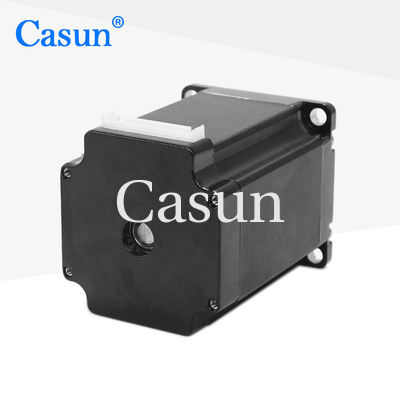

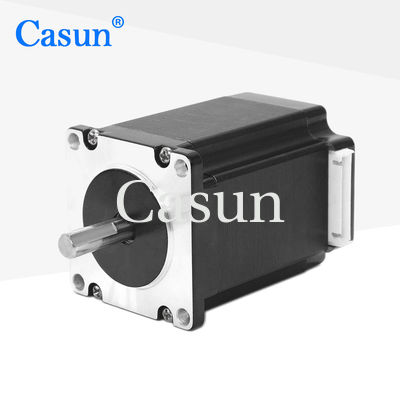

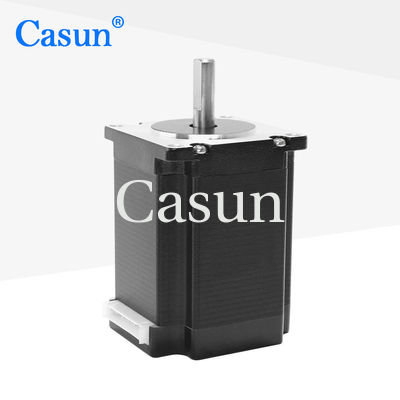

57x57x76mm 2 Phase High Torque 2.2N.m 3.0A NEMA 23 Hybrid Stepper Motor for CMM Robot

57x57x76mm 2 Phase High Torque 2.2N.m 3.0A NEMA 23 Hybrid Stepper Motor for CMM Robot

Nazwa marki:	Casun
Numer modelu:	57SHD0807-24BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

2200mNm

Aktualny:

3,0 A

Długość silnika:

76 mm

Wał:

Płaski wał frezujący o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

NEMA 23 Hybrid Stepper Motor

3.0A Hybrid Stepper Motor

Opis produktu

The NEMA 23 stepper motor has advantages such as high precision, high torque output, good response speed, and reliability.

The simple control method makes them easy to integrate into various systems.

Features:

High torque and high precision
For high-tech industry and electronic industry equipment
Our engineers will be in contact within 48 hours to provide the most optimal solution
Our products deliver both high torque and precision
We provide personalized services and are open to contract manufacturing

Appearance

57x57x76mm 2 Phase High Torque 2.2N.m 3.0A NEMA 23 Hybrid Stepper Motor for CMM Robot 0

Dimensions

57x57x76mm 2 Phase High Torque 2.2N.m 3.0A NEMA 23 Hybrid Stepper Motor for CMM Robot 1

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	3.0 A
Holding Torque	2200 mN.m
Resistance	2.0 ohm
Inductance	8.0 mH
Rotor Inertia	460 g-cm²
Motor weight	1 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
