Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm

Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm

Nazwa marki:	Casun
Numer modelu:	57SHD0002-25M
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

0,35 Nm

Aktualny:

0,4a

Długość silnika:

41 mm

Wał:

Okrągły wał o długości 25 mm

Średnica wału:

6.35

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

4 Wires Stepper Motor Bipolar

0.35Nm 4 Wires Stepper Motor

Opis produktu

Nema 23 Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm 4 Wires Stepper Motor

The NEMA 23 stepper motor has high positioning accuracy, typically reaching the level of several micrometers.

NEMA 23 stepper motors have a wide range of applicability and can be used in many different application fields.

Features:

High torque and high precision
Offer custom services
We are experts in drivetrain solutions
We provide a ten-year warranty to ensure confident purchases
Our engineers will contact you within 48 hours to offer the optimal solution

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	0.35 N.m
Resistance	18 ohm
Inductance	35 mH
Rotor Inertia	135 g-cm²
Motor weight	0.42 kg
Number of leads	4
Connection	Bipolar

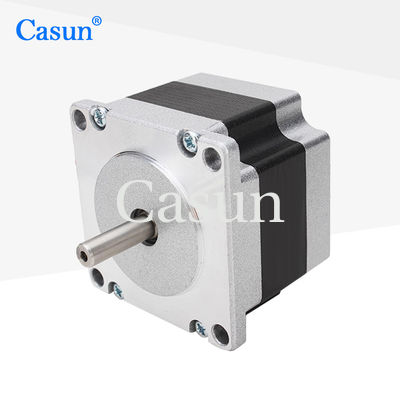

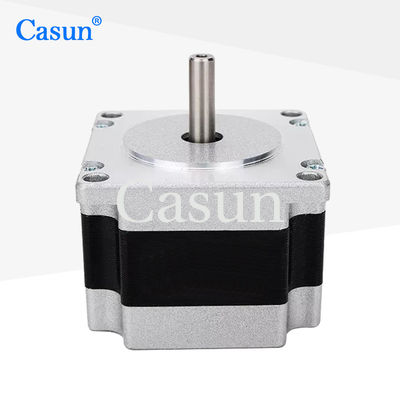

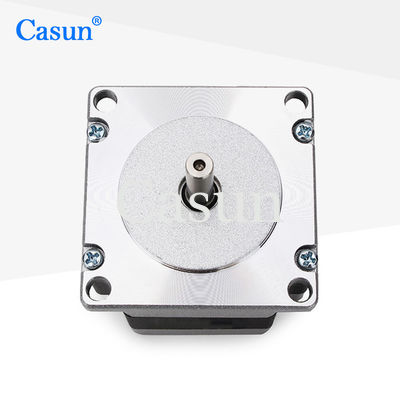

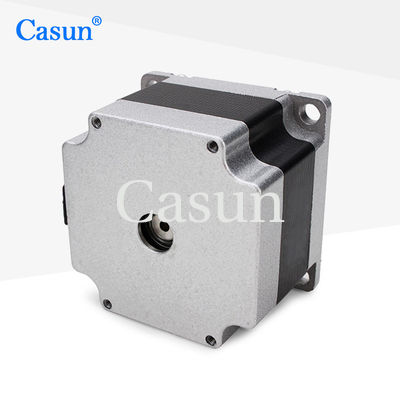

Appearance

Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm 0

Dimensions

Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
