1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting

1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting

Nazwa marki:	Casun
Numer modelu:	42SHD0003-24BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

280mNm

Aktualny:

0,4a

Długość silnika:

34 MM

Wał:

Płaski wał frezujący o długości 24 mm

Napięcie znamionowe:

12 V

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

2 Phase Hybrid Step Motor

0.28N.M Hybrid Step Motor

Hybrid Step Motor For Stage Lighting

Opis produktu

1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

In the field of robotics, 42mm stepper motors are often used to control joint motion.

Features:

High torque and high precision
High-tech industry and electronic industry equipment necessitate multiple international certifications
Available in single or double shaft versions
We are open to contract manufacturing arrangements
We actively pursue dealers!

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	280 mN.m
Resistance	30 ohm
Inductance	37 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

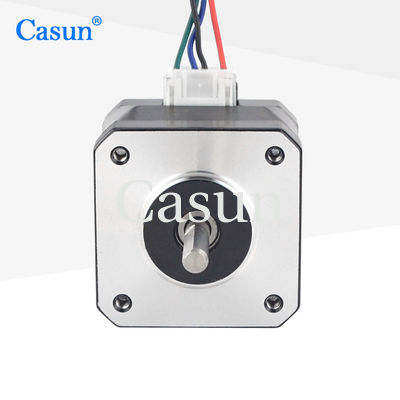

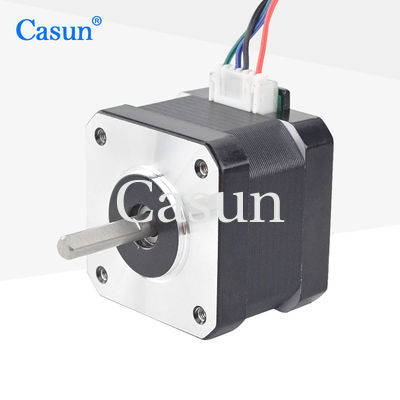

Appearance

1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting 0

Dimensions

1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
