0.28N.M 424234mm Hybrid Stepper Motor With CE ISO9001 NEMA 17 Step Motor

0.28N.M 424234mm Hybrid Stepper Motor With CE ISO9001 NEMA 17 Step Motor

Nazwa marki:	Casun
Numer modelu:	42SHD0026-20BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

280mNm

Aktualny:

0,8A

Długość silnika:

34 MM

Wał:

Frezowanie płaskiego wału o długości 20 mm

Napięcie znamionowe:

4,5 V

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.28N.M Hybrid Stepper Motor

NEMA 17 Hybrid Stepper Motor

Opis produktu

Hybrid 0.28N.M 42*42*34mm With CE ISO9001 NEMA 17 Step Motor

The 42mm stepper motor can accurately control the rotation position and speed based on the input pulse signal.

Industrial automation 3D printers, textile machinery, medical equipment, office equipment.

Features:

High torque and high precision
Ten-year warranty for confident purchases
Specialists in drivetrain solutions
Our engineers will reach out within 48 hours to offer the optimal solution
We actively pursue dealers!

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	280 mN.m
Resistance	5.6 ohm
Inductance	7.5 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

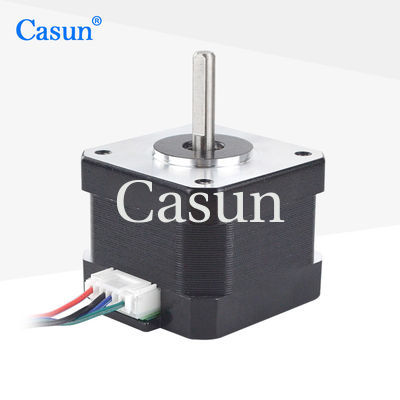

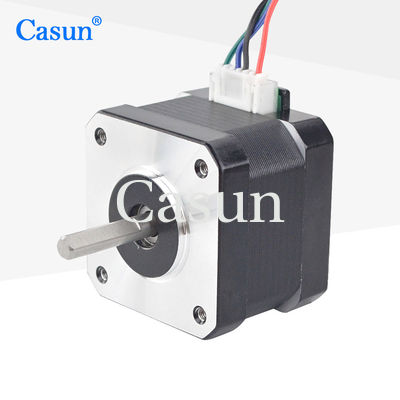

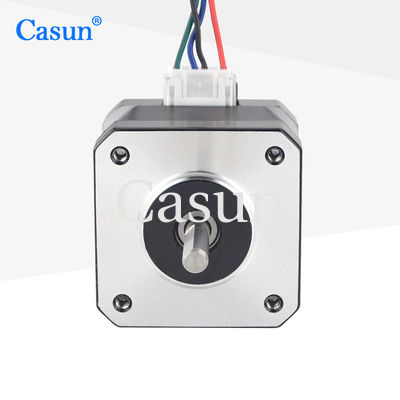

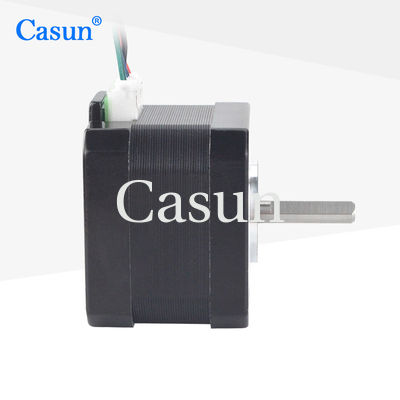

Appearance

0.28N.M 42*42*34mm Hybrid Stepper Motor With CE ISO9001 NEMA 17 Step Motor 0

Dimensions

0.28N.M 42*42*34mm Hybrid Stepper Motor With CE ISO9001 NEMA 17 Step Motor 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
