0.75A DC Bipolar Stepper Motor For 3D Printer Parts 42x42x34mm

0.75A DC Bipolar Stepper Motor For 3D Printer Parts 42x42x34mm

Nazwa marki:	Casun
Numer modelu:	42SHD4048-20BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

320mNm

Aktualny:

0,75A

Długość silnika:

34 MM

Wał:

Frezowanie płaskiego wału o długości 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.75A DC Bipolar Stepper Motor

Bipolar Stepper Motor For 3D Printer

Opis produktu

0.75A DC Bipolar Stepper Motor For 3D Printer Parts 42x42x34mm

The 42mm stepper motor is commonly used in 3D printers to drive the position and movement of the print head.

High precision and reliability enable printers to accurately perform printing operations.

Features:

Bipolar or unipolar versions available
We provide customized services and welcome contract manufacturing
A ten-year warranty for confident purchases
Professional research and development manufacturing
Seeking dealers! !

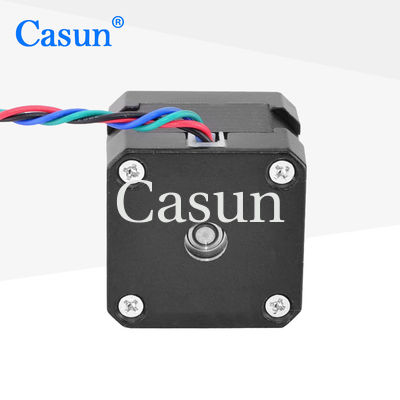

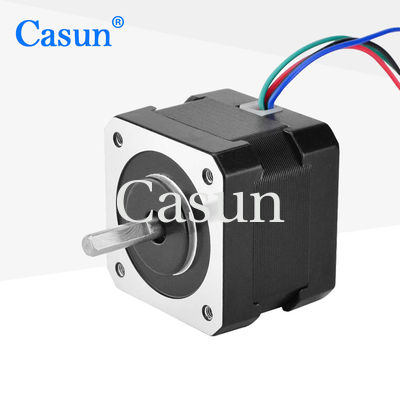

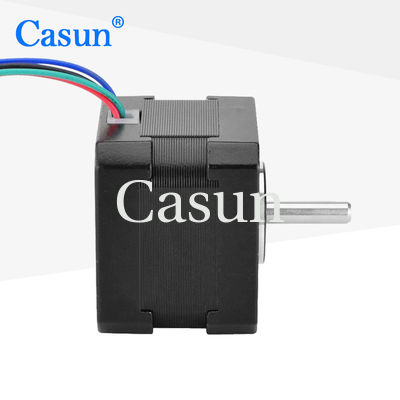

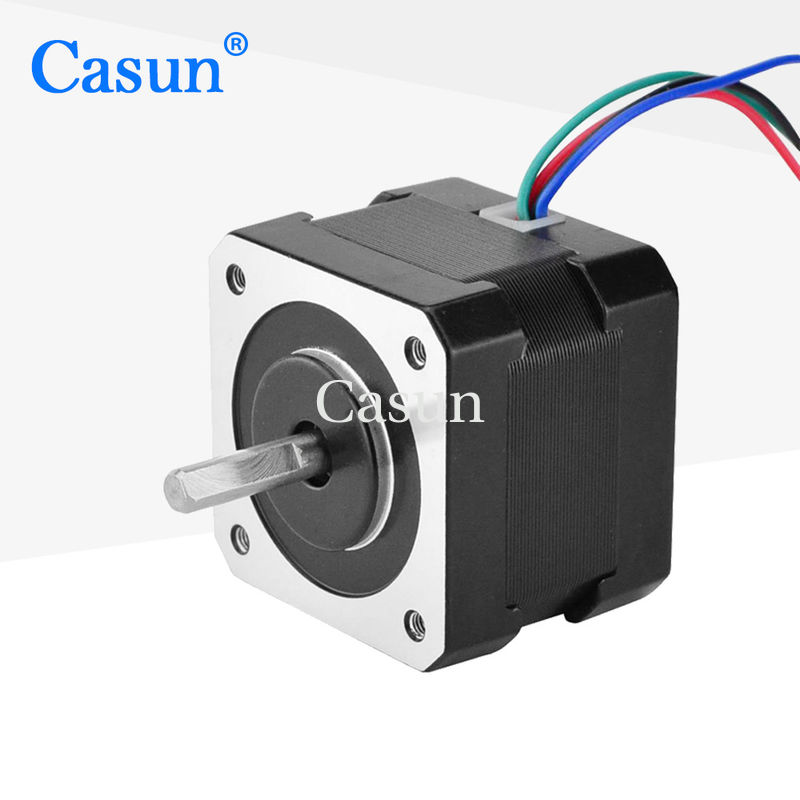

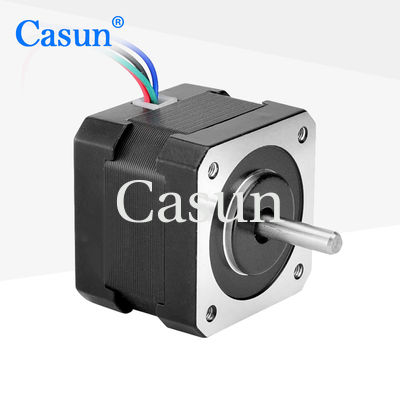

Appearance

0.75A DC Bipolar Stepper Motor For 3D Printer Parts 42x42x34mm 0

Dimensions

0.75A DC Bipolar Stepper Motor For 3D Printer Parts 42x42x34mm 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.75 A
Holding Torque	320 mN.m
Resistance	10 ohm
Inductance	15 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
