1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m

1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m

Nazwa marki:	Casun
Numer modelu:	42SHD4079-24BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

320mNm

Aktualny:

1,33A

Długość silnika:

34 MM

Wał:

Płaski wał frezujący o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Stepping Motor NEMA 23 1.33A

Medical Equipment Stepping Motor NEMA 23

Opis produktu

1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment With ROHS

The 42mm stepper motor can be used in medical equipment, such as precision medical imaging equipment or surgical robots.

Excellent performance in applications that require quick start stop and frequent changes in movement direction.

Features:

High torque and accuracy
Expertise in professional research and development manufacturing
We are looking for dealers!
Professional research and development manufacturing
Our engineers will respond within 48 hours to provide the best solution

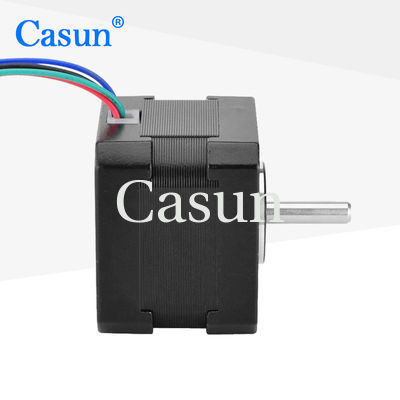

Appearance

1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m 0

Dimensions

1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.33 A
Holding Torque	320 mN.m
Resistance	2.7 ohm
Inductance	4.2 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
