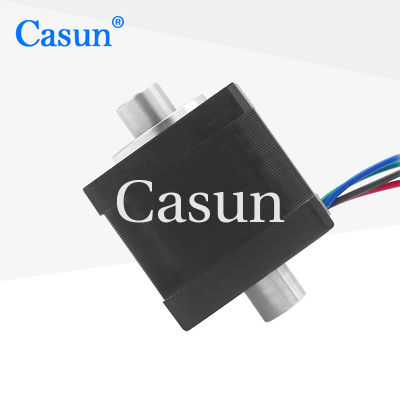

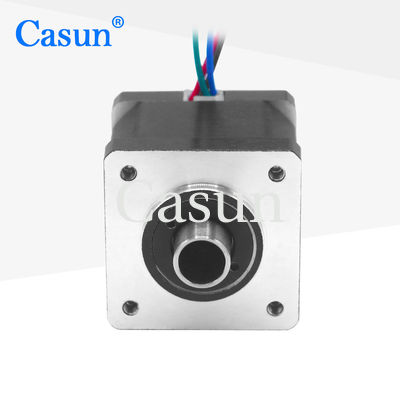

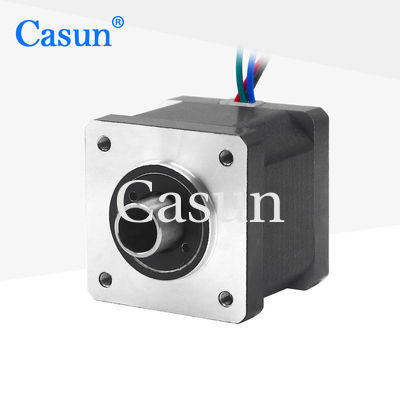

NEMA 14 Hollow Stepper Motor Dual Shaft 1.0A 0.19N.M For Image Scanners

NEMA 14 Hollow Stepper Motor Dual Shaft 1.0A 0.19N.M For Image Scanners

Nazwa marki:	Casun
Numer modelu:	P35SHD4150-9SKH
MOQ:	1 szt
Cena:	$4.14-$6.98
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

190mNm

Aktualny:

1,0 A

Długość silnika:

34 MM

Wał:

Podwójna pusta długość 9 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

NEMA 14 Hollow Stepper Motor

Dual Shaft Hollow Stepper Motor

Opis produktu

NEMA 14 Hollow Stepper Motor Dual Shaft 1.0A 0.19N.M For Image Scanners

The central part of the rotor is designed to be hollow and can transmit signals such as gas, liquid, or optical fibers through axial through-holes.

Consisting of two independent rotors, each rotor can be independently controlled.

Features:

Our engineers will reach out within 48 hours to offer the optimal solution
A ten-year warranty for confident purchases
Available in variations with a single or double shaft
Expert manufacturing research and development
Our engineers will respond within 48 hours to provide the best solution

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	190 mN.m
Resistance	3.5 ohm
Inductance	3.6 mH
Rotor Inertia	20 g-cm²
Motor weight	0.18 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
