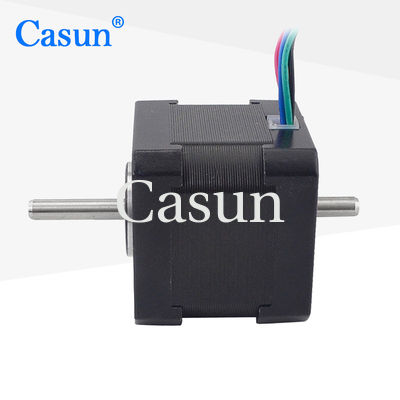

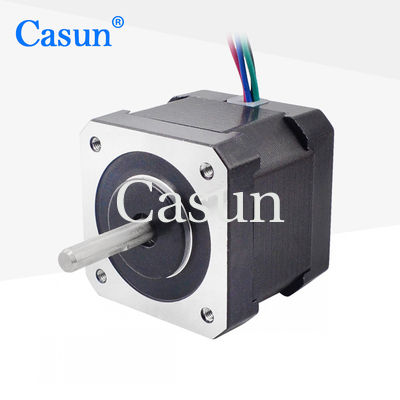

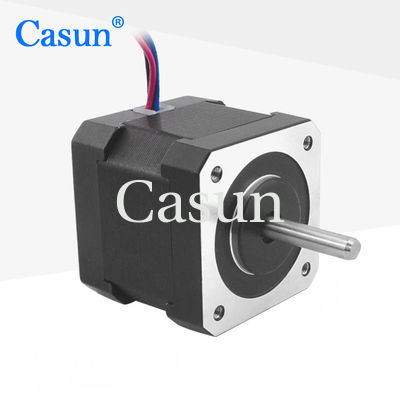

Two Axis 0.4N.M NEMA 17 Stepper Motor 1.7A 40mm Body For Robots

Two Axis 0.4N.M NEMA 17 Stepper Motor 1.7A 40mm Body For Robots

Nazwa marki:	Casun
Numer modelu:	42SHD4239-24SH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

400mNm

Aktualny:

1.7A

Długość silnika:

40mm

Wał:

Podwójny wał o długości 24 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.4N.M NEMA 17 Stepper Motor

Two Axis NEMA 17 Stepper Motor

40mm NEMA 17 Stepper Motor

Opis produktu

Two Axis 0.4N.M NEMA 17 Stepper Motor 1.7A 40mm Body For Robots

The 42mm dual axis motor does not require the use of sensors for feedback, reducing the complexity and cost of the system.

Stepper motors have a long service life and high reliability due to their simple structure.

Features:

Tailored service options
Seeking dealers!
A ten-year warranty for confident purchasing
Having operated in China for 12 years, we have catered to over 800 customers
Accepting contract manufacturing

Appearance

Two Axis 0.4N.M NEMA 17 Stepper Motor 1.7A 40mm Body For Robots 0

Dimensions

Two Axis 0.4N.M NEMA 17 Stepper Motor 1.7A 40mm Body For Robots 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.7 A
Holding Torque	400 mN.m
Resistance	1.43 ohm
Inductance	2.75 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
