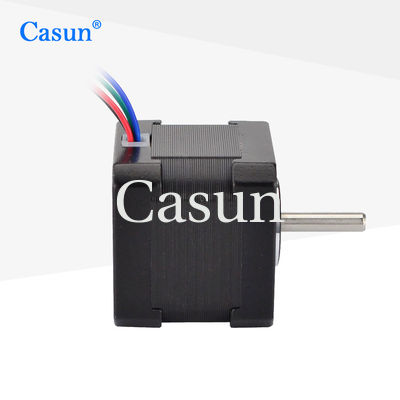

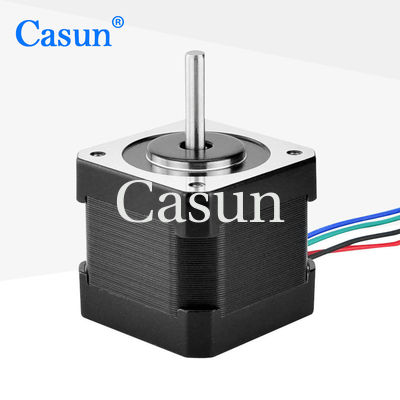

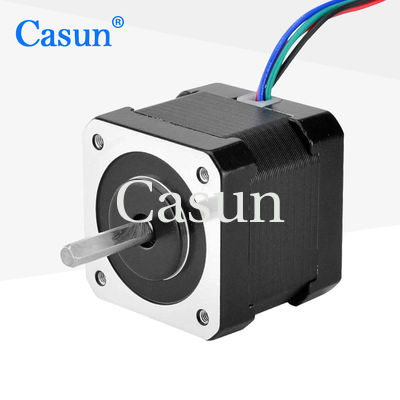

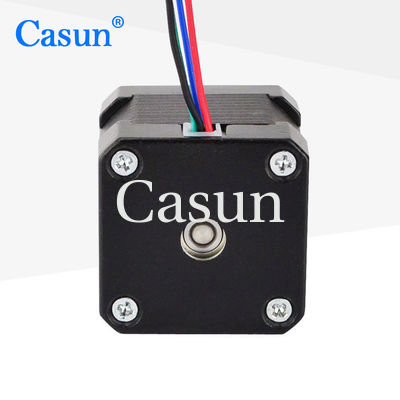

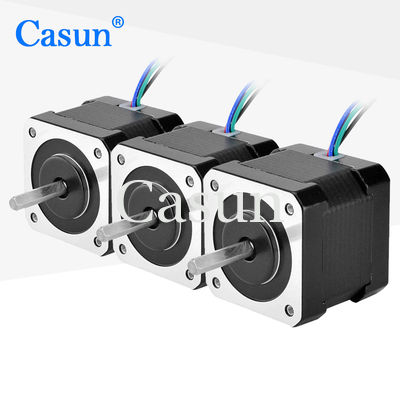

NEMA 17 2 Phase Hybrid Stepper Motor Low Noise For 3d Printer

NEMA 17 2 Phase Hybrid Stepper Motor Low Noise For 3d Printer

Nazwa marki:	Casun
Numer modelu:	42SHD4261-11BH-0
MOQ:	1 szt
Cena:	$2.5-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

450mNm

Aktualny:

168A

Długość silnika:

40mm

Wał:

Płaski wał frezujący o długości 11 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

2 Phase Hybrid Stepper Motor

NEMA 17 Hybrid Stepper Motor

Hybrid Stepper Motor For 3d Printer

Opis produktu

NEMA 17 2 phase hybrid stepper motor low noise with CE certifications for 3d printer

The 42mm stepper motor is a space-efficient option for installation and arrangement in many industrial automation applications, such as 3D printers, textile machinery, and medical equipment.

Features:

We have been operating in China for 12 years, and we have served more than 800 clients.

Our specialty is providing custom services.

expert in drivetrain solutions

We are actively looking for dealers!

Custom services are available, and contract manufacturing is accepted.

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	450 mN.m
Resistance	1.95 ohm
Inductance	4.4 mH
Rotor Inertia	57 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

Appearance

NEMA 17 2 Phase Hybrid Stepper Motor Low Noise For 3d Printer 0

Dimensions

NEMA 17 2 Phase Hybrid Stepper Motor Low Noise For 3d Printer 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
