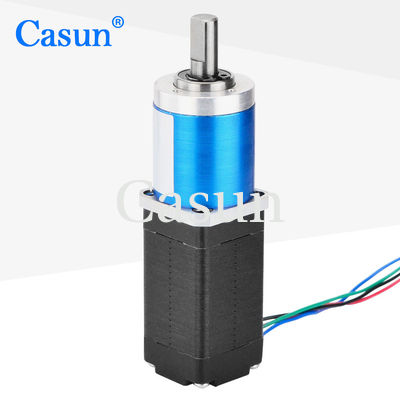

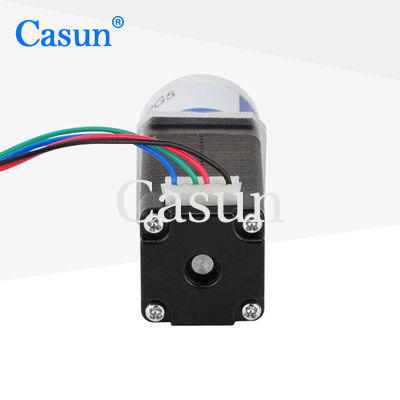

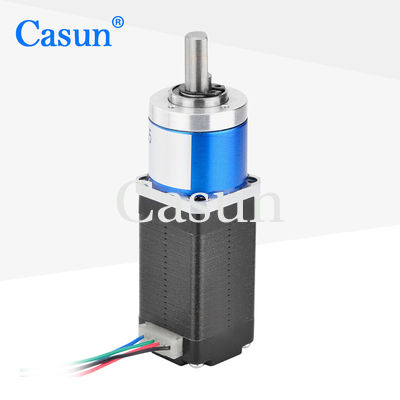

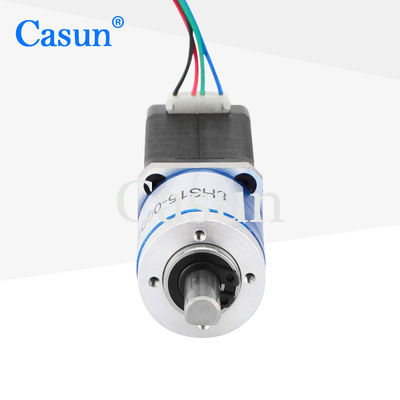

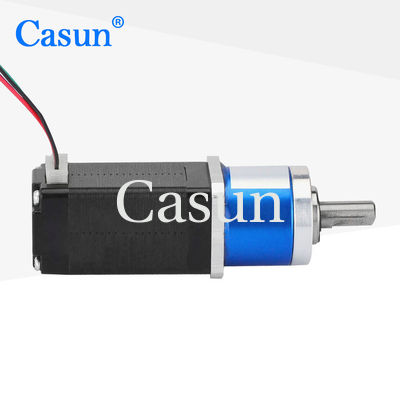

Mini 14mN.M Nema 8 Gearbox Stepper Motor 0.2A Casun Stepper Motors

Mini 14mN.M Nema 8 Gearbox Stepper Motor 0.2A Casun Stepper Motors

Nazwa marki:	Casun
Numer modelu:	20SHD4303-5G
MOQ:	1 szt
Cena:	$18.41-$25.54
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

14mNm

Aktualny:

0,2A

Długość silnika:

28mm

Wał:

Płaski wał o długości 5 mm

Woltaż:

4,4 V

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Nema 8 Gearbox Stepper Motor

14mN.M Gearbox Stepper Motor

Opis produktu

Mini 14mN.m Nema 8 Gearbox Stepper Motor 0.4A Casun 4.4V Stepping Motor for Beauty Equipment Motor paso a paso

20*20*28mm 0.4A Casun Geabox Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.2 A
Holding Torque	14 mN.m
Resistance	22 ohm
Inductance	6 mH
Rotor Inertia	2 g-cm²
Motor weight	0.1 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Stepper Motor,BLDC Motor

4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
