2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 353534mm 0.15N.M For Stage Lighting

2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 353534mm 0.15N.M For Stage Lighting

Nazwa marki:	Casun
Numer modelu:	35SHD4103-10B
MOQ:	1 szt
Cena:	$4.14-$6.98
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

155mNm

Aktualny:

1,0 A

Długość silnika:

34 MM

Wał:

Płaski wał frezujący o długości 10 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1.8 Deg Nema 14 Stepping Motor

Nema 14 Stepping Motor Stage Lighting

Opis produktu

2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting

The 35mm stepper motor can quickly start and stop after receiving control signals, and has good response speed.

Provide different configuration options, such as different step angles, lengths, and torque levels.

Features:

Established in China for 12 years, we have served more than 800 customers.
Hybrid stepper construction
Available in single or double shaft versions
High torque and high precision are our specialties
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	155 mN.m
Resistance	3.8 ohm
Inductance	5.8 mH
Rotor Inertia	14 g-cm²
Motor weight	0.18 kg
Number of leads	4
Connection	Bipolar

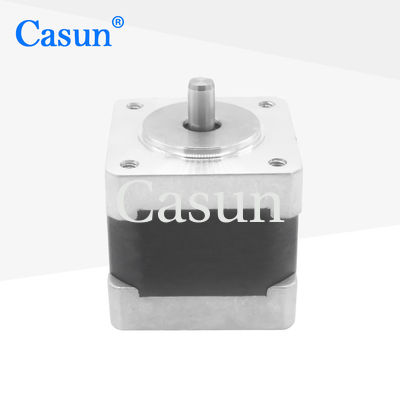

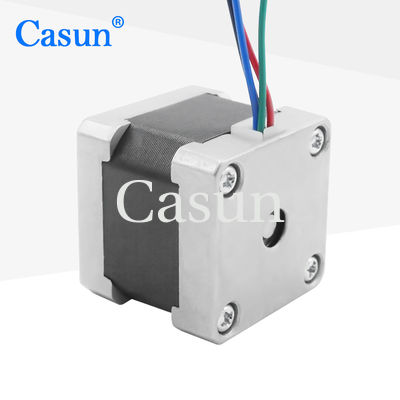

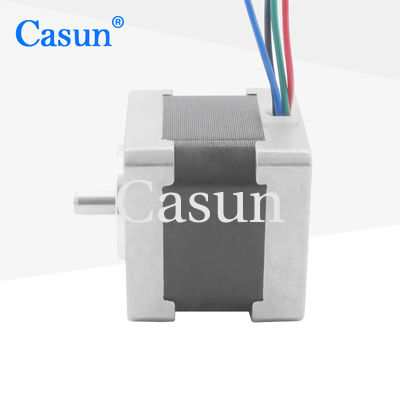

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
